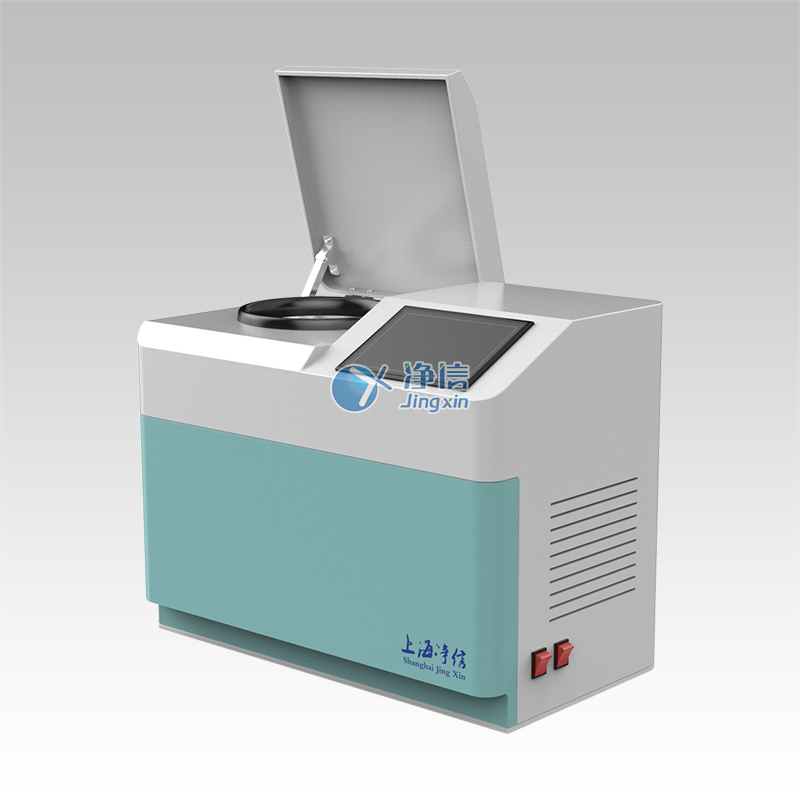

Model：JXFSTPRP-CLN-48
Brand：Shanghai Jingxin
Specifications ：Taiwan
Introduction：For difficult-to-grind samples such as high-toughness plastics, high-strength plastics, and resins, low-temperature grinding can greatly improve the grinding effect and efficiency.
JXFSTPRP-CLN-48 (patented product, counterfeiting must be investigated! ZL2017305264903) three key elements of sample processing:
○High efficiency grinding-up to 192 samples processed in one batch
○Cryogenic grinding-grinding temperature can be customized
○No damage to the sample composition-low temperature protection of the sample composition
Sample range: animal and plant tissues, microorganisms, rock minerals, soil, medicine, chemical polymers, etc.
Application fields: life sciences, medicine, biochemistry, environment, geology and other scientific research fields
Technical characteristics of cryomill:
·Adjustable cooling
·Fast cooling speed
·Large grinding flux
·Good grinding effect
·Fully enclosed grinding
·Stable repeatability
·Program can be stored
Features:
?Save time and effort
?High speed and convenient
?High throughput processing samples
? Good experiment reproducibility
?The sample is in a fully enclosed state, no cross-contamination
?Low noise ≤55db: use brushless frequency conversion motor
?No need to involve liquid nitrogen operation, high safety
?No wearing parts design, electromagnetic lock protection
?Stainless steel inner cavity, easy to clean and disinfect
?No need for regular maintenance
The main parameters
Parameter range
Application areas:
Tissue homogenization, grinding, cell disruption, homogenization, material dispersion, preparation, sample mixing, shaking
Sample processing:
It can handle 48 samples at the same time in 15 seconds, including liquid nitrogen refrigeration adapters that can be used for 12 and 24 positions
Compatible sample volume:
48*(0.2-0.5ML) /48*2ML /12*(5-15)ML /4*25ML /2*50ML, various specifications of grinding tubes can be customized
Touch screen display:
Touch screen display, convenient and intuitive operation
Storing data
Ten sets of experimental data can be stored, and animal heart, spleen, lung, kidney, bone, skin, and hair modes are set according to different experimental samples.
Pattern cycle:
According to the set experimental parameters, it can continuously circulate among several set parameters to further reduce the interference of human factors
Feed size
No requirement, adjust according to adapter
Cooling function:
Yes, adjustable from -50 ℃ to room temperature
Temperature control accuracy:
+ 0.5 ℃
Open cover operation protection:
Electromagnetic lock
Discharge size
~5μm
The number of grinding platforms (the number of grinding tanks that can be accepted)
>2
Fastening device with automatic center positioning
Yes
Homogenization speed and time:
0—70 HZ/sec, working time: 0 second to 9999 minutes, users can set by themselves;
Range of rotation:
1000rpm-7000rpm；
Diameter of grinding ball:
0.1-30mm
Grinding ball kit material:
Alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand;
Accelerate:
Achieve greater speed in 2 seconds
Decelerate
Reach a lower speed in 2 seconds
Noise level:
<55db
Grinding method
Wet grinding, dry grinding and low temperature grinding are all available
Refrigeration:
Has the ability to upgrade to ultra-low temperature liquid nitrogen refrigeration or air refrigerator refrigeration
Adapter material:
PTFE or alloy steel
Fastening device:
Fastening device with automatic center positioning, safety lock when working, full protection
Grinding kit material:
Hard steel, PTFE (Teflon) zirconia
Opening method:
Smart start
Dimensions
700mm*380mm*500mm
Weight
75Kg
Frozen grinder
