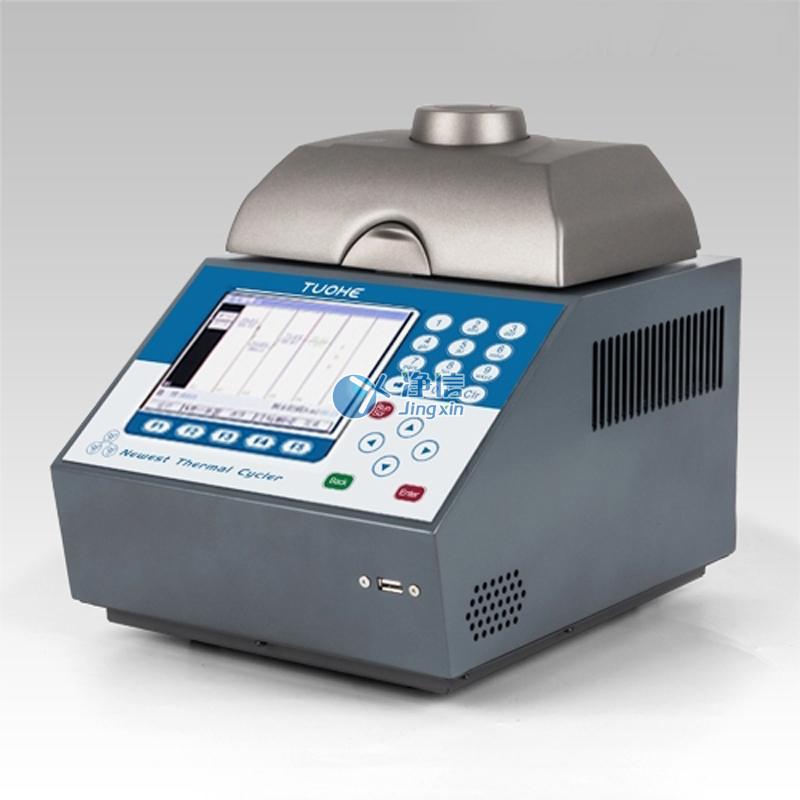

Model：THG-96G (gradient)
Brand：Jingxin
Specifications ：Set
Introduction：Gradient amplification PCR detection and analysis instrument is a kind of equipment that uses PCR technology to amplify specific DNA.
Gradient amplification PCR detection analyzer:
The PCR amplifier is an instrument that uses PCR (Polymerase chain reaction, polymerase chain reaction) technology to amplify specific DNA. It is widely used in medical and biological laboratories, for example, it is used to determine whether the sample will show a genetic disease map, the diagnosis of infectious diseases, gene replication, and paternity testing.
Guide to the use of gradient amplification PCR detection analyzer:
1. Connect the power supply, turn on the power switch, the indicator light on the lower right side of the display will light up, about 20 seconds later, a login dialog box appears, click the login button to enter the system homepage.
2. Press the file management icon to enter the file management page.
3. Press the new icon in the lower left corner, enter the file name in the pop-up dialog box, and click the OK button to pop up the new program dialog box.
4. Click the add button in the lower left corner, enter the temperature required in step 1, click Enter, and enter 5 (heat preservation time, minutes: seconds)". The first step is set up. Press the lower left corner "confirm and enter the next step" to start Enter the next setting. Until the program setting is completed, press "confirm and return, press save and run, the program starts to run.
5. When the program is over, turn off the power.
technical parameter:
Main parameters
Parameter range
Model
THG96G
(gradient type)
THG96
(standard type)
THG48
Temperature rise and fall technology
Semiconductor refrigeration
LCD
5.7-inch true color screen, curve graph display program
U disk function
Unlimited download of programs via U disk
Communication Interface
USB2.0*1
Language
Support Chinese and English
Sample stage capacity
0.2ml*96 hole
0.2ml*48 hole
Sample stage temperature range
0℃-100℃
Maximum heating rate
5℃/Second
Maximum cooling rate
4.5℃/Second
Temperature uniformity of sample stage
≤±0.2℃
Temperature accuracy of sample stage
Temperature display resolution
0.1℃
Temperature control method
Analog tube + sample stage
Variable temperature speed adjustable
Have
Gradient temperature accuracy
None
Gradient temperature uniformity
Gradient range
30℃-100℃
Temperature range
0-30℃
Number of program storage
The instrument can store 120 programs, and can download unlimited programs via U disk
Maximum number of steps
40, can do multiple nested loops
Maximum number of cycles
100 standard loops (up to 60,000 nested loops)
Time increase/decrease
1-120 seconds, can do Long PCR experiment
Temperature increase/decrease
0.1-10.0℃, can do Touchdown PCR experiment
自動暫停Auto pause
Power failure protection
heat preservation
Infinite holding time
Run time display
Real Time Clock
Hot lid temperature
30℃-110℃ adjustable
Heat cover height
Stepless free adjustment, adapt to different PCR tubes
Hot lid repressurization technology
Two levels of adjustment, no matter how many sample tubes are running during the experiment, the pressure of the sample tube can be kept constant
The hot lid closes automatically
When the set temperature of the sample stage is lower than 30℃ or the program ends, it will automatically shut down
Input power, power
Universal power supply （220VAC/47-65Hz)， 200W-600W
Size, net weight
303mm*243mm*273mm，9Kg
More sample table capacity
0.2ml*96 hole+0.5ml*77 hole, 0.2ml*48hole +0.5ml*48 hole, 0.2ml*108 hole+0.5ml*88
Gradient amplification PCR detection analyzer THG-96G (gradient)
