Model：THT-96G (gradient type)
Brand：Jingxin
Specifications ：Set
Introduction：Gene amplification instrument PCR instrument gradient type fully considers the special requirements of PCR experiments,and has carried out a targeted design for the temperature control of the instrument,......
PCR amplification instrument, also known as PCR gene amplification instrument, PCR nucleic acid amplification instrument, polymerase chain reaction nucleic acid amplification instrument, is a kind of amplification of specific DNA using PCR (Polymerase chain reaction, polymerase chain reaction) technology equipment.
Features:
1. Imported core parts, guaranteed quality and life,
2. 7-inch high-resolution color large screen, easy to operate
3. Excellent temperature uniformity, the best experimental results can be obtained
4. Support Chinese and English, users can switch freely
5. Unlimited download of programs via U disk
6. Hot lid repressurization technology, no matter how many sets of sample tubes are running, it can keep the sample tube pressure constant, and the sample tube is in close contact with the sample stage
7. Support Chinese and English, users can switch freely
Application field
It is widely used in medical and biological laboratories, for example, it is used to determine whether the sample will show a genetic disease map, the diagnosis of infectious diseases, gene replication, and paternity testing.
PCR instrument parameters:
Main parameters
Parameter range
Model
THT96G
(gradient type)
THT96
(standard type)
THT48
Temperature rise and fall technology
Semiconductor refrigeration
LCD
7-inch true color screen, curve graph display program
U disk function
Unlimited download of programs via U disk
Communication Interface
USB2.0*2 RS232
Support mouse
Use multi-user names;
Computer connection
Password protection
Wireless connection, one computer can connect 100 PCR instrument at the same time; The cable connection
Have
Language
Support Chinese and English
Sample stage capacity
0.2ml*96 hole
0.2ml*48 hole
Sample stage temperature range
0℃-100℃
Maximum heating rate
5℃/Second
Maximum cooling rate
Temperature uniformity of sample stage
≤±0.2℃
Temperature accuracy of sample stage
Temperature display resolution
0.1℃
Temperature control method
Analog tube + sample stage
Variable temperature speed adjustable
Gradient temperature accuracy
None
Gradient temperature uniformity
Gradient range
30℃-100℃
Temperature range
0-30℃
Number of program storage
The instrument can store 120 programs, and can download unlimited programs via U disk
Maximum number of steps
40, can do multiple nested loops
Maximum number of cycles
100 standard loops (up to 60,000 nested loops)
Time increase/decrease
1-120 seconds, can do Long PCR experiment
Temperature increase/decrease
0.1-10.0℃, can do Touchdown PCR experiment
Auto pause
Power failure protection
heat preservation
Infinite holding time
Run time display
Real Time Clock
Hot lid temperature
30℃-110℃ adjustable
Heat cover height
Stepless free adjustment, adapt to different PCR tubes
Hot lid repressurization technology
Two levels of adjustment, no matter how many sample tubes are running during the experiment, the pressure of the sample tube can be kept constant
The hot lid closes automatically
When the set temperature of the sample stage is lower than 30℃ or the program ends, it will automatically shut down
Input power, power
Universal power supply （220VAC/47-65Hz)， 200W-600W
Size, net weight
303mm*243mm*273mm，9Kg
notepad
Tm value calculated
More sample table capacity
0.2ml*96 hole+0.5ml*77 hole, 0.2ml*48 hole+0.5ml*48 hole 0.2ml*108 hole +0.5ml*88
hole,0.2ml*384 hole,0.2*48 hole，0.2ml*32 hole。Can add,

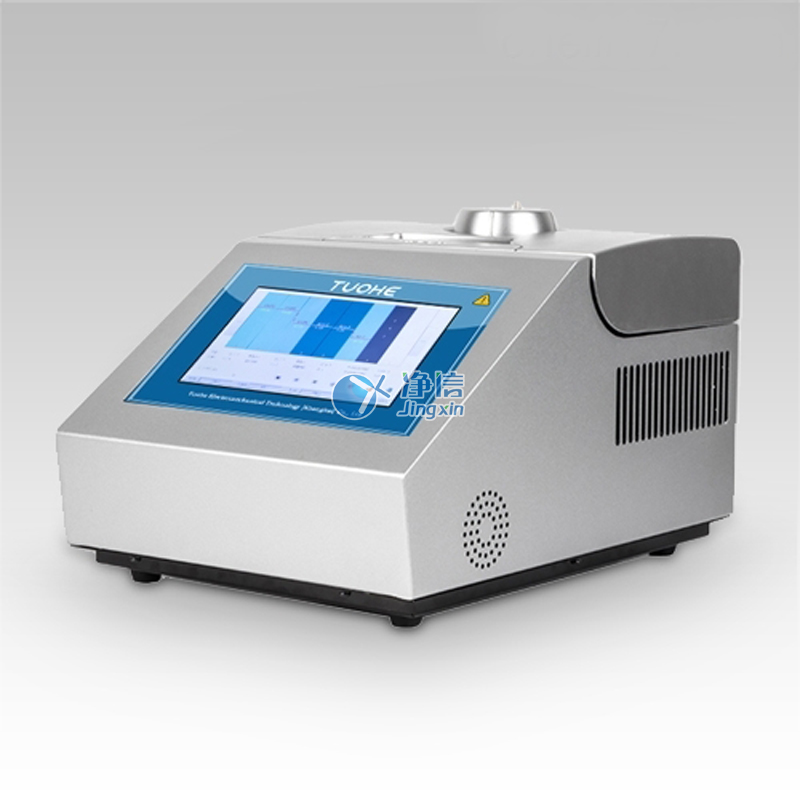

Gene amplification instrument PCR instrument THT-96G (gradient type)
