Model：JXGS-2A
Brand：Shanghai Jingxin
Specifications ：Set

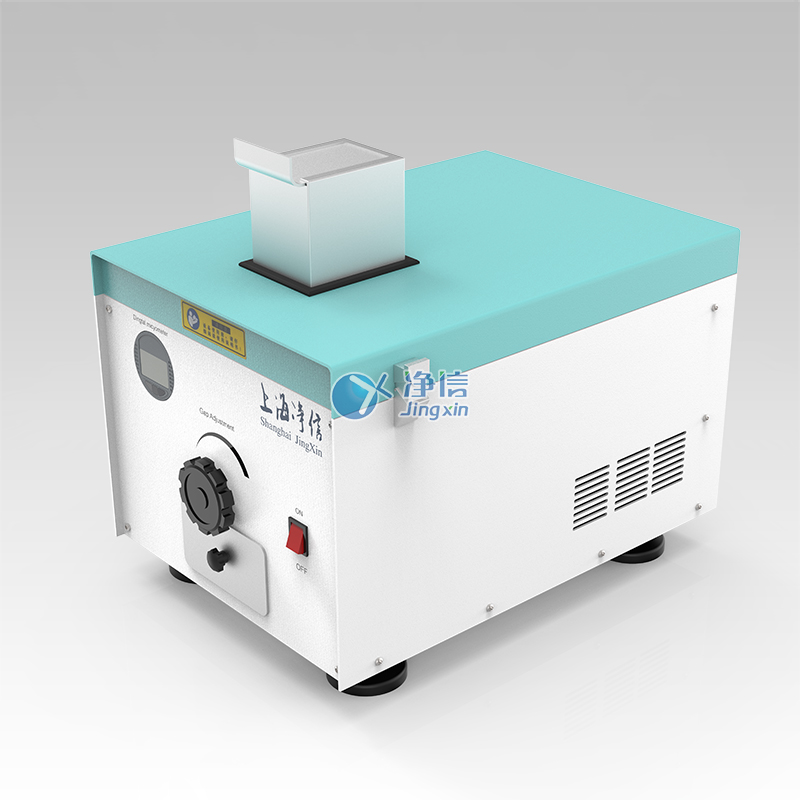

Introduction：JXGS-2A is a small jaw crusher. Both the movable jaw and the fixed jaw are lined with corundum lining plates. There are corundum ceramic plates on both sides of the crushing cavity, ......
Product Description:
JXGS-2A is a small jaw crusher, whose movable jaw and fixed jaw are lined with corundum liner;
There are corundum ceramic plates on both sides of the crushing cavity, which greatly improves the wear resistance of the equipment and does not pollute the materials. At the same time, the gap between the movable jaw and the fixed jaw can be adjusted.
The jaw crusher can be used as the front machine of the material ball mill.
technical parameter:
Main parameters
Parameter range
Voltage
208 - 240VAC 50Hz
Crushing speed
500rpm
Sample type
Medium hard, hard, brittle samples
Time
0-60 minutes adjustable
Jaw plate
Two high-purity corundum ceramic liners-easy to clean.
Crushing size
Feeding size: 1- 50mm
Outlet size: 0.5 mm-2mm
Features
The main components are the body and the movable jaw
The front is equipped with a fixed jaw liner, the material is corundum ceramic, and the left and right sides are equipped with corundum ceramic liner
The movable jaw is also lined with corundum ceramic liner. Since the four sides of the jaw chamber are lined with non-metallic liner, it does not pollute the material and improves the wear resistance.
Dimensions
400*550*530
Net weight
50 lbs
Warranty period
One year warranty period, lifetime maintenance
Jaw Crusher
