Model:JXZJY-A
Brand:Jingxin
Specifications :

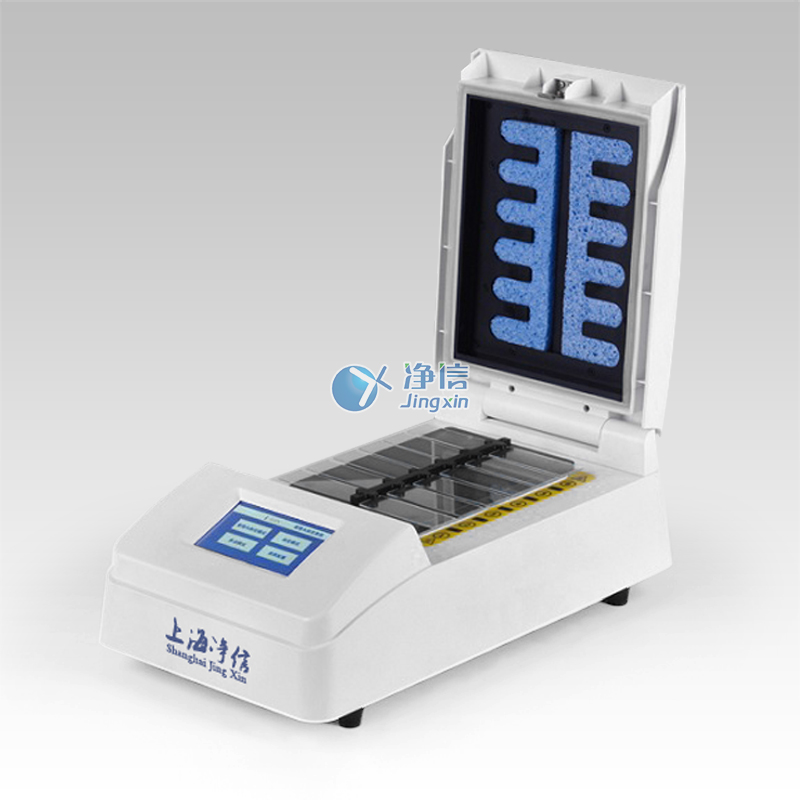

Introduction:JXZJY-A in situ hybridization instrument adopts micro-processing technology combined with PID control method to realize the denaturation and hybridization process of 12 glass slides.
Product Description:
JXZJY-A in situ hybridization instrument uses micro-processing technology combined with PID control mode to achieve the denaturation and hybridization process of 12 slides. The sealed upper cover and humidifying parts ensure a more ideal hybridization environment. It integrates three operation modes of denaturation/hybridization, hybridization, and multi-step operation, which are suitable for various in situ hybridization experiments.
Features:
◆ Full touch screen operation, friendly interpersonal operation interface;
◆ Provide Chinese/English operation menu selection;
◆ It has a power-off recovery function. If there is a power-off situation during use, the device can automatically resume operation according to the original set procedure after the power is received;
◆ Support automatic cooling function after running;
◆ Support automatic preheating function;
◆ The platform has high temperature control accuracy and small temperature fluctuations;
◆ It can support 105 custom program storage functions;
◆ It can process 12 slides at the same time;
◆ It integrates three operation modes: denaturation/hybridization, hybridization, and multi-step operation.
Technical parameter:
The main parameters
Parameter range
Temperature control range
Room temperature +5℃~100℃
Temperature control accuracy
≤±1℃
Temperature uniformity
Sample size
12片
input power
350W
Dimensions
440X220X120mm
time setting
1min~99h59min
Temperature setting range
0℃~100℃
Heating time
≤2 minutes (heating from 37°C to 95°C)
Cooling time
≤6 minutes (95℃ cooling down to 45℃)
Fuse
250V 3A Ф5X20
weight
4.5kg
In situ hybridization
