Model：JX-10
Brand：Jingxin
Specifications ：Set

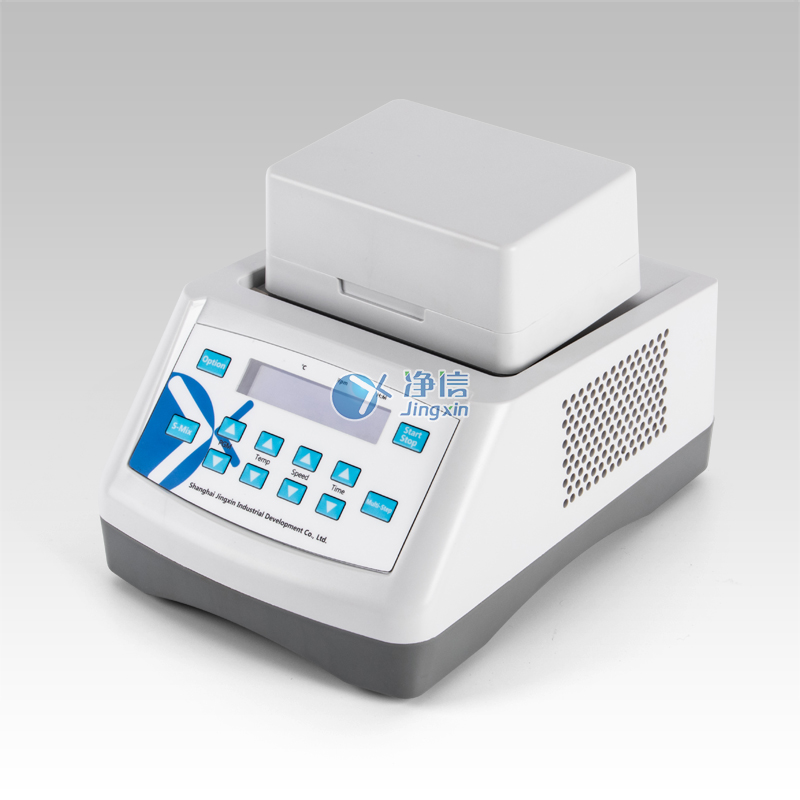

Introduction：JX-10 is an economical dry-type thermostat controlled by a microcomputer. It uses high-purity aluminum as a heat-conducting medium to replace the traditional water bath device.
Product Description:
JX-10 is an economical dry-type thermostat controlled by a microcomputer. It uses high-purity aluminum as a heat-conducting medium to replace the traditional water bath device. It has the characteristics of exquisite appearance, convenient use, high precision, and small size. It can be widely used in sample preservation and reaction, DNA amplification and electrophoresis pre-denaturation, serum coagulation, etc.
Features:
◆Real-time temperature display, time countdown display;
◆Automatic fault detection and buzzer alarm function;
◆Temperature deviation calibration function;
◆Built-in over-temperature protection device;
◆Convenient module replacement, easy to clean and disinfect;
◆Exquisite appearance, blue LCD display real-time parameter information;
◆Optional power-off auto-recovery function and auto-run function after power-on to improve work efficiency;
◆Intelligent algorithm ensures the temperature control accuracy of ≤±0.3℃ in the whole range, effectively reducing the experimental error;
◆Multiple safety protection to ensure long-term operation stability and safety under unattended conditions, in line with CE standards;
◆Support module classification custom calibration function;
technical parameter:
Main parameters
Parameter range
Temperature setting range
0℃~100℃
Temperature control range
Room Temperature +5℃~100℃
time setting
1min~99h59min/∞
Temperature control accuracy
≤±0.3℃*
Display accuracy
0.1℃
Temperature uniformity
Heating time
≤12minutes（25℃ to 100℃）*
Multi-point operation
Support (5 points)
Multi-point loop operation
Support (can be cycled 99 times)
Automatic preheating
support
Automatically run on startup
Automatic recovery after power failure
Sample capacity
See module selection table
input power
150W
Voltage
AC220V/50-60HZ
Fuse
250V 3A Ф5×20
Dimensions(mm)
260x195x150 mm
weight
2.5Kg

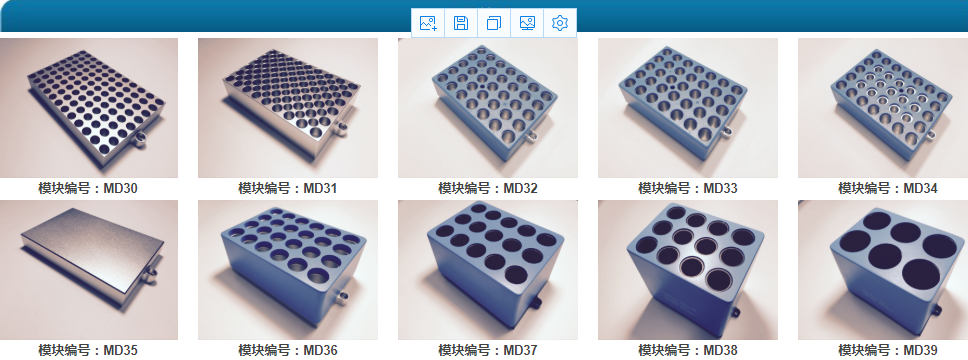

Optional modules:
Model
Test tube diameter
Test tube number
MD30
0.2ml (standard plate)
96
MD31
0.5ml (centrifuge tube)
54
MD32
1.5ml (centrifuge tube)
35
MD33
2.0ml (centrifuge tube)
MD34
0.5ml+1.5ml (centrifuge tube)
15+20
MD35
0.2ml (enzyme plate)
MD36
5ml
24
MD37
10ml
15
MD38
15ml
12
MD39
50ml
6
Custom module
Sample tube specifications provided by the customer
——
Optional accessories:
Thermostatic metal bath
