Model:JX-20
Brand:Jingxin
Specifications :Set

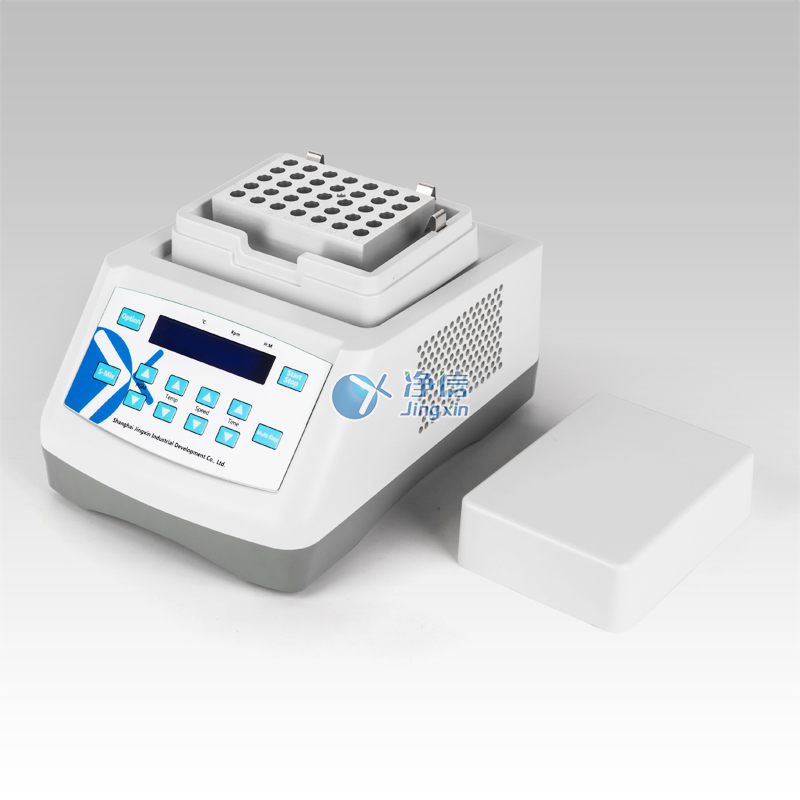

Introduction:JX-20 is a high-performance dry-type thermostat that uses microcomputer control and semiconductor refrigeration technology. It uses high-purity aluminum as a heat transfer medium to replace the traditional water bath device.
product description:
JX-20 is a high-performance dry-type thermostat that uses microcomputer control and semiconductor refrigeration technology. It uses high-purity aluminum as a heat transfer medium to replace the traditional water bath device. It has exquisite appearance, convenient use, high precision, and small size. , Features such as large temperature control range.
Using high-quality semiconductor refrigeration film and switching power supply module to ensure long-term stable and reliable operation. It can be widely used in sample preservation and reaction, DNA amplification and electrophoresis pre-denaturation, serum coagulation, etc.
Features:
◆Real-time temperature display, time countdown display;
◆Automatic fault detection and buzzer alarm function;
◆Temperature deviation calibration function;
◆Built-in over-temperature protection device;
◆Convenient module replacement, easy to clean and disinfect;
◆Exquisite appearance, blue LCD display real-time parameter information;
◆Temperature deviation calibration function, optional power-off automatic recovery function, automatic operation function after power-on, improve work efficiency;
◆Intelligent algorithm ensures the temperature control accuracy of ≤±0.3℃ in the whole range, effectively reducing the experimental error;
◆Multiple safety protection to ensure long-term operation stability and safety under unattended conditions, in line with CE standards;
◆Support module classification custom calibration function;
technical parameter:
Main parameters
Parameter range
Temperature setting range
0℃~100℃
Temperature control range
30℃~100℃
below room temperature
time setting
1min~99h59min/∞
Temperature control accuracy
≤±0.3℃*
Display accuracy
0.1℃
Temperature uniformity
Heating time
≤10 minutes(25℃-100℃)*
Cooling time 1
≤10 minutes(100℃- 25℃)*
Cooling time 2
(room temperature drops to 30℃ below room temperature)*
Store at 4℃ after running
support
Multi-point operation
Support (5 points)
Multi-point loop operation
Support (can be cycled 99 times)
Automatic preheating
Automatically run on startup
Automatic recovery after power failure
Sample capacity
See module selection table
input power
150W
Voltage
AC110~220V/50-60HZ
Fuse
250V 3A Ф5×20
Dimensions(mm)
260x195x150 mm
weight
4.5Kg

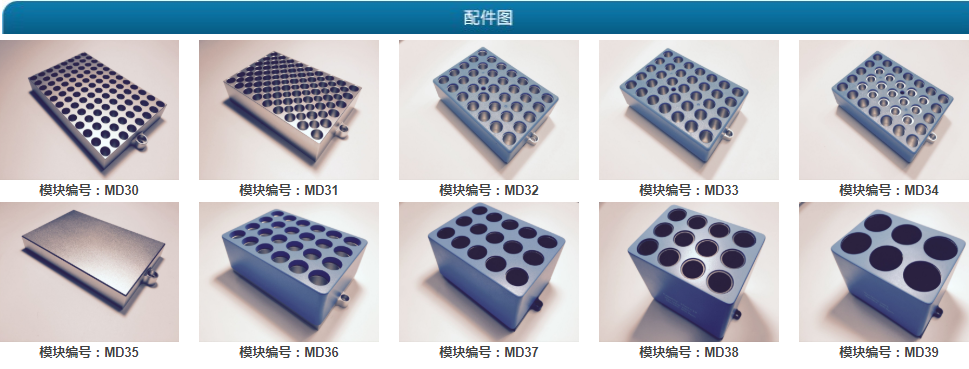

Optional modules:
Model
Test tube diameter
Test tube number
MD30
0.2ml ((standard plate)
96
MD31
0.5ml (centrifuge tube)
54
MD32
1.5ml (centrifuge tube)
35
MD33
2.0ml (centrifuge tube)
MD34
0.5ml+1.5ml (centrifuge tube)
15+20
MD35
0.2ml (enzyme plate)
MD36
5ml
24
MD37
10ml
15
MD38
15ml
12
MD39
50ml
6
Customized module
Sample tube specifications provided by the customer
——
Optional accessories:
Thermostatic metal bath refrigeration type
