Model:JXMINI-80
Brand:Jingxin
Specifications :Set

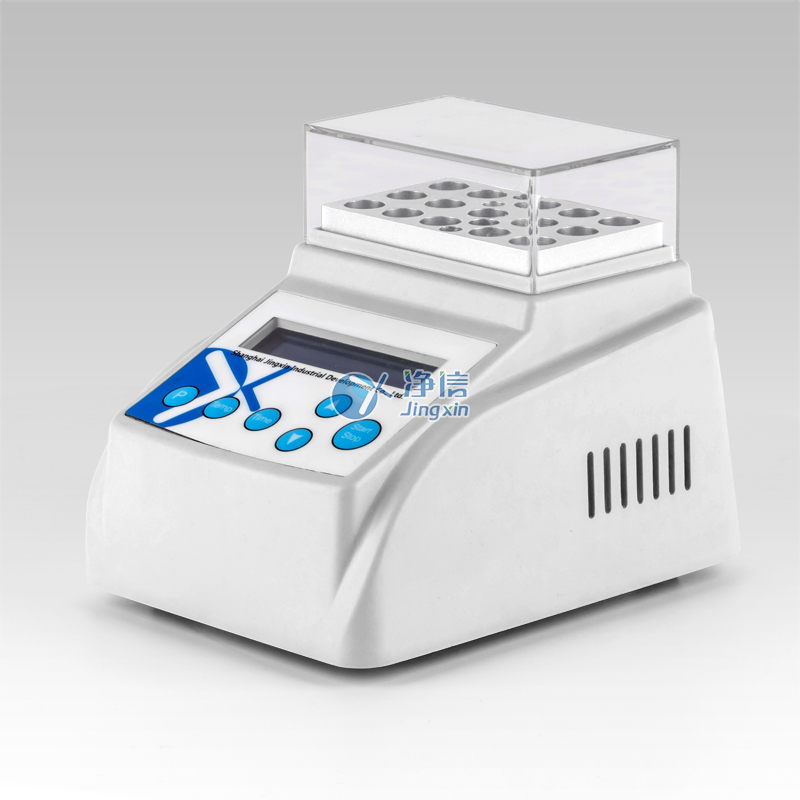

Introduction:JXMINI-80 is a mini-type dry thermostat with PID fuzzy control technology. It is small in size, light in weight and high in temperature control accuracy.
product description:
JXMINI-80 is a mini-type dry thermostat with PID fuzzy control technology. It is small in size, light in weight and high in temperature control accuracy. It can be widely used in sample preservation and reaction, DNA amplification and electrophoresis pre-denaturation, serum Solidification and so on. It is suitable for any occasions with 100-240V power supply, such as on cars and ships.
Features:
◆Small size, flexible movement;
◆A variety of specification modules are available to meet the needs of different test tubes;
◆Portable, suitable for 24V power supply adaptation;
◆Intelligent algorithm to ensure the temperature control accuracy of ≤±0.3℃ in the full range, effectively reducing the experimental error;
◆Optional power-off auto-recovery function and auto-run function after power-on to improve work efficiency;
◆Each instrument is equipped with a handle, even in the high temperature state, the module can be replaced safely and quickly, and the test progress can be accelerated;
◆The transparent heat preservation cover is convenient for users to observe the whole process of the experiment through perspective;
◆Multiple safety protection to ensure long-term operation stability and safety under unattended conditions, in line with CE standards;
technical parameter:
Main parameters
Parameter range
Temperature control range
Room temperature+5℃~100℃
Time setting range
1min~99h
Display accuracy
0.1℃
Heating rate
≤15min (from 20℃ to 100℃)
voltage
AC100~240V, 50~60Hz
Dimensions
145×113×110mm
Temperature control accuracy
≤±0.3℃
Module temperature uniformity
Ambient temperature
5℃ ~ 35℃
Temperature stability
±0.3℃
Higher power
40W
weight
0.5KG

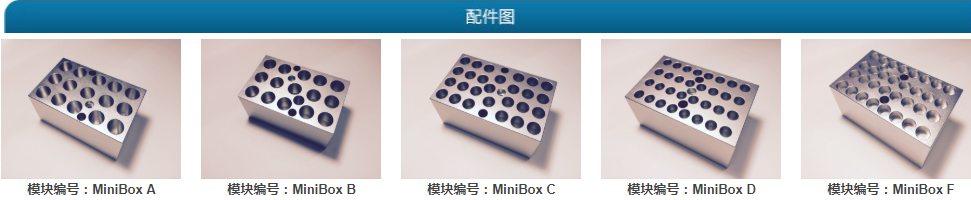

Optional modules:
Model
Test tube diameter
Test tube number
MiniBox A
2.0ml (centrifuge tube)
15
MiniBox B
1.5ml (centrifuge tube)
MiniBox C
0.5ml (centrifuge tube)
24
MiniBox D
0.2ml (centrifuge tube)
32
MiniBox F
0.2ml (enzyme standard strip)
Custom module
Sample tube specifications provided by the customer
——
Mini thermostat metal bath
