Model：JXMINI-C
Brand：Jingxin
Specifications ：Set

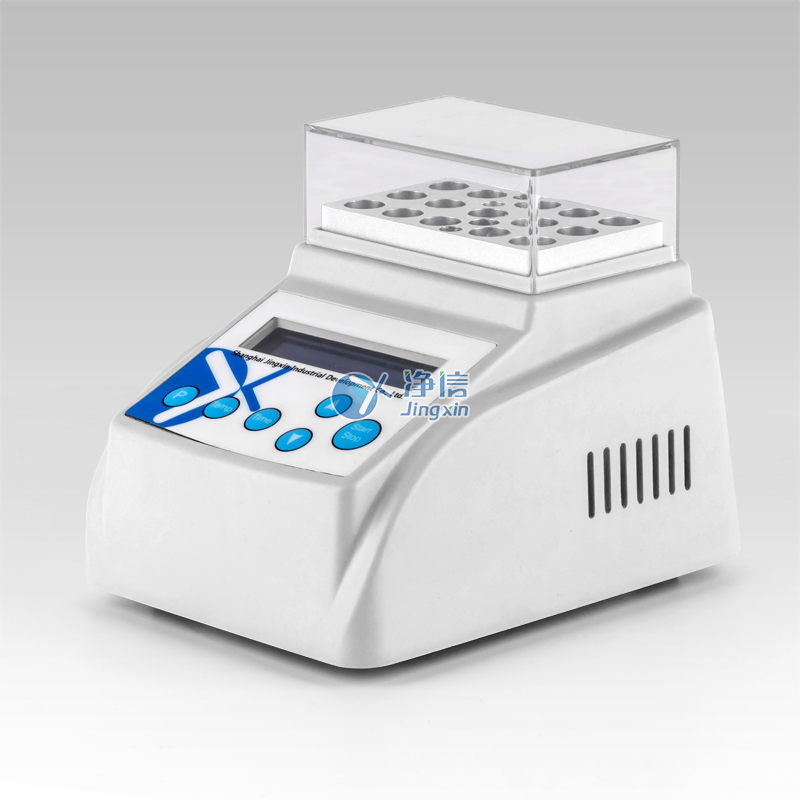

Introduction：JXMINI-80/JXMINI-C is a mini-type dry thermostat that uses PID fuzzy control technology. It is small in size, light in weight, and has high temperature control accuracy.
Product introduction:
JXMINI-80/JXMINI-C is a mini-type dry thermostat that uses PID fuzzy control technology. It is small in size, light in weight, and has high temperature control accuracy. It can be widely used in sample preservation and reaction, DNA amplification and electrophoresis. Predenaturation, serum coagulation, etc. It is suitable for any occasions with 100-240V power supply, such as on cars and ships.
Features:
1. Small size and flexible movement
2. A variety of specification modules are available to meet the needs of different test tubes
3. Portable, suitable for 12V power adapter
4. The intelligent algorithm ensures the temperature control accuracy of ≤±0.3℃ in the full range, effectively reducing the experimental error
5. Optional power-off auto-recovery function, automatic start-up function, improve work efficiency
6. Each instrument is equipped with a module handle, even in a high temperature state, the module can be replaced safely and quickly
7. The transparent insulation cover is convenient for users to observe the whole process of the experiment through perspective
8. Multiple safety protections ensure long-term operation stability and safety under unattended conditions, comply with CE standards, and are safe and reliable.
Product parameters:
Main parameters
Parameter range
model
JXMINI-80
JXMINI-C
Temperature setting range
room temperature +5℃～100℃
Below room temperature15℃～100℃
Temperature control accuracy
≤±0.3℃
Time setting range
1sec～99h59min/∞
Module temperature uniformity
Display accuracy
0.1℃
Temperature stability
±0.3℃
Heating rate
≤20min（from 40℃~100℃）
≤20min（from 25℃~100℃）
Cooling time 1
--
≤20 minutes （100℃ to 25℃）
Cooling time 2
≤25 minutes (room temperature drops to 15°C below room temperature)
Store at 4℃ after running
support
Multi-point operation
Support (maximum 5 points)
Multi-point loop operation
Support (maximum number of cycles 99)
Automatic preheating
Automatically run on startup
Automatic recovery after power failure
Sample size
See product accessories for details
Dimensions
5×113×110mm
145×113×140mm
Maximum power
40W
60W
voltage
AC100~240V / 50~60Hz
weight
0.5kg
1kg
Optional modules:
Optional modules
Number of test tubes and aperture
Number of holes
MiniBox A
15×2.0ml
(centrifuge tube)
Standard centrifuge tube
MiniBox B
15×1.5ml
MiniBox C
24×0.5ml
MiniBox D
32×0.2ml
Standard 0.2ml PCR tube
MiniBox F
Standard 0.2ml enzyme label strip
Custom modules
provided by customers
Mini refrigerated metal bath
