Model：JX100-1
Brand：Jingxin
Specifications ：Set
Introduction：Adopting two-level redundant hardware circuit design, with unique intelligent software algorithm, high temperature control accuracy, stable and reliable operation.
product description:

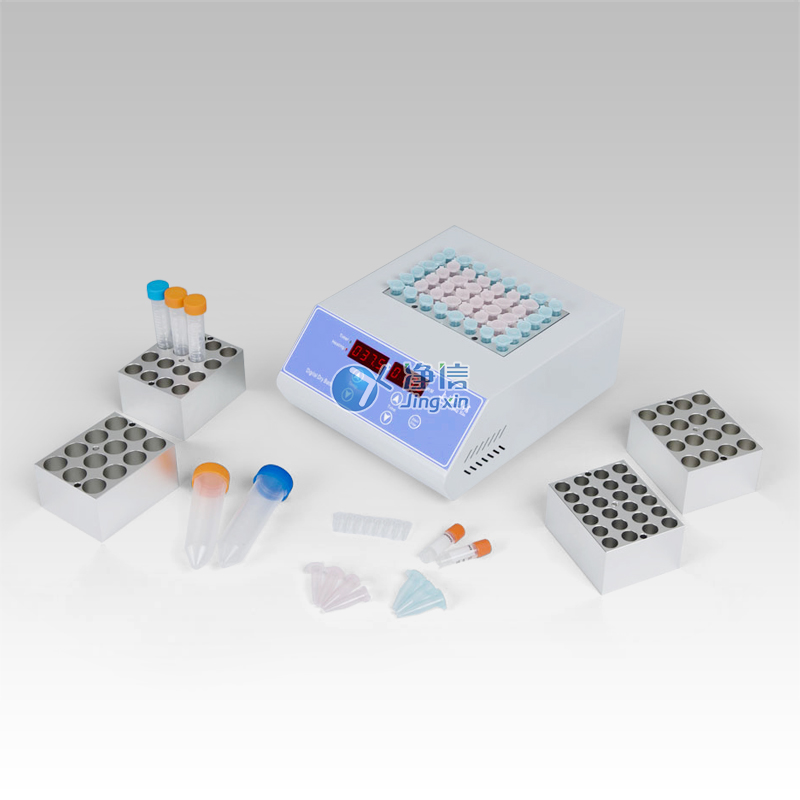

JX100-1 is a high-temperature dry-type thermostat controlled by a microcomputer. It uses high-purity aluminum material as a heat-conducting medium to replace the traditional water bath device. It has the characteristics of convenient use, large temperature control range, and high precision. It can be widely used Sample preservation and reaction, DNA amplification and electrophoresis pre-denaturation, serum coagulation, etc.
Adopting two-level redundant hardware circuit design, with unique intelligent software algorithm, high temperature control accuracy, stable and reliable operation.
Features:
◆Real-time temperature display and time decreasing display;
◆Automatic fault detection and buzzer alarm function;
◆With temperature deviation calibration function;
◆Convenient module replacement, easy to clean and disinfect;
◆Built-in over-temperature protection device;
◆Two-level redundant hardware circuit design, more reliable to use;
technical parameter:
Main parameters
Parameter range
Temperature control range
Room temperature+5℃~130℃
Temperature stability
≤±1℃ (@100℃~150℃)
Large temperature difference of the module
0.3℃(@40℃)
Display accuracy
0.1℃
voltage
AC 220V
Dimensions
260X220X100 mm
Heating time
≤30min (From 40℃ to 150℃)
≤±0.5℃ (@40℃~100℃)
Module temperature uniformity
≤±0.5℃
Long time setting
99h59min
power
400W
weight
5KG
Optional modules:
Model
Test tube diameter
Test tube number
MD01
6mm（47mm）Hole depth
48
MD02
7mm（47mm）Hole depth
MD03
10mm（47mm）Hole depth
24
MD04
12mm（47mm）Hole depth
MD05
13mm（47mm）Hole depth
MD06
15mm（47mm）Hole depth
16
MD07
16mm（47mm）Hole depth
MD08
19mm（47mm）Hole depth
12
MD09
20mm（47mm）Hole depth
MD10
26mm（47mm）Hole depth
8
MD11
28mm（47mm）Hole depth
4
MD12
40mm（47mm）Hole depth
3
MD13
0.2ml (Centrifuge tube)
MD14
0.5ml (Centrifuge tube)
MD15
1.5ml (Centrifuge tube)
MD16
2.0ml (Centrifuge tube)
Custom module
Sample tube specifications provided by the customer
——
Thermostatic metal bath
