Model:JX100-4
Brand:Jingxin
Specifications :Set
Introduction:JX100-4 It can be widely used in the constant temperature incubation process of various biochemical samples such as sample preservation and reaction, DNA amplification and electrophoresis pre-denaturation, and serum coagulation.
Product Description:

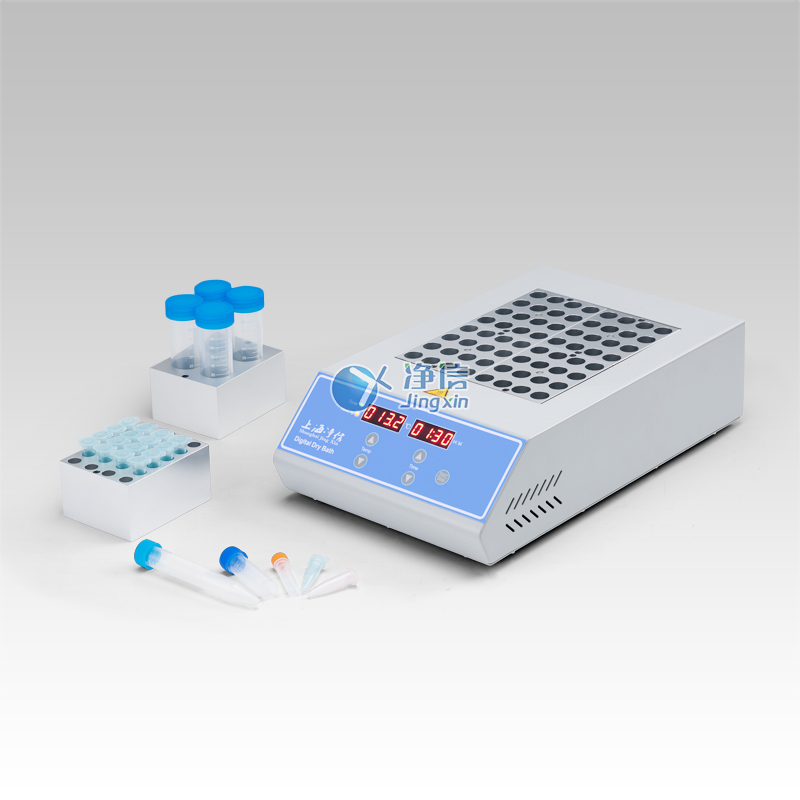

The JX100-4 high-temperature dry thermostat is controlled by a microcomputer and uses high-purity aluminum as a heat-conducting medium to replace the traditional water bath device. It has the characteristics of convenient use, large temperature control range and high precision. It can be widely used in the constant temperature incubation process of various biochemical samples such as sample preservation and reaction, DNA amplification and electrophoresis pre-denaturation, and serum coagulation.
Features:
◆Real-time display temperature value display, countdown display;
◆Automatic fault detection and alarm function;
◆With temperature deviation calibration function;
◆Convenient module replacement, easy to clean and disinfect;
◆Built-in over-temperature protection device;
Performance:
Main parameters
Parameter range
Temperature control range
Room temperature +5℃~130℃
Temperature control accuracy
±0.5℃(@40℃)
Temperature uniformity
±0.5℃
Display accuracy
0.1℃
voltage
AC 220V
Dimensions
360*220*100 mm
Heating time
≤20min (25°C to 130°C)
±1℃(@120℃)
Timing range
1-99h59min/∞
Number of modules
4
power
600W
weight
8.0KG
Optional modules:
Model
Test tube diameter
Test tube number
MD01
6mm(47mm)Hole depth
48
MD02
7mm(47mm)Hole depth
MD03
10mm(47mm)Hole depth
24
MD04
12mm(47mm)Hole depth
MD05
13mm(47mm)Hole depth
MD06
15mm(47mm)Hole depth
16
MD07
16mm(47mm)Hole depth
MD08
19mm(47mm)Hole depth
12
MD09
20mm(47mm)Hole depth
MD10
26mm(47mm)Hole depth
8
MD11
28mm(47mm)Hole depth
MD12
40mm(47mm)Hole depth
3
MD13
0.2ml (Centrifuge tube)
MD14
0.5ml (Centrifuge tube)
MD15
1.5ml (Centrifuge tube)
MD16
2.0ml (Centrifuge tube)
MD17
0.2ml (Standard board)
96
Custom module
Sample tube specifications provided by the customer
——
High temperature four-module thermostatic metal bath
