Model：RH-10
Brand：Jingxin
Specifications ：Set

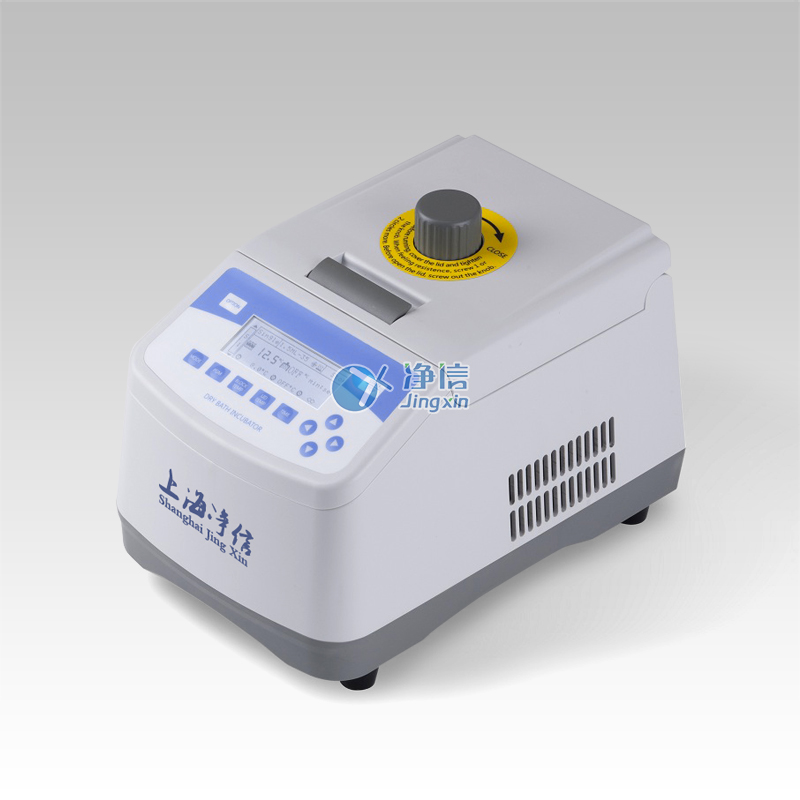

Introduction：RH-10 hot-lid metal bath is a sample constant temperature incubation equipment designed based on semiconductor heating and cooling technology and PID automatic temperature control technology.
Product introduction:
RH-10 hot-lid metal bath is a sample constant temperature incubation equipment designed based on semiconductor heating and cooling technology and PID automatic temperature control technology. Flexible timing, constant temperature function and unique multi-point operation mode effectively improve laboratory work efficiency. It is an ideal equipment for various sample incubation, catalysis and preservation reactions.
Features of hot-lid metal bath products:
1. Simple and easy-to-use man-machine operation interface, real-time display of all operating information and setting information, convenient for users to observe the operating status of the equipment;
2. High temperature control accuracy;
3. Two kinds of precise timing functions can be selected to achieve a larger 99 hours and 59 minutes or 99 minutes and 59 seconds;
4. A variety of modules for users to choose, and can also be customized according to customer requirements;
5. The temperature of the hot lid is controllable;
6. Support multi-point operation function, and the number of multi-point cycles can be configured;
7. Support automatic preheating function;
8. Support automatic recovery function after power failure;
9. Support the automatic operation function after booting;
10. Support 4℃ storage at the end of operation;
11. Temperature calibration function;
12. Built-in software and hardware dual over-temperature protection device, the use is more reliable;
13. Support module classification custom calibration function.
Product parameters of hot-lid metal bath:
Main parameters
Parameter range
model
RH-10
Module specifications
EH series module
EHC series module
Temperature setting range
0℃~100℃
-10℃~100℃
Temperature control range
Room temperature+5℃~100℃
below room temperature
time setting
1sec~99h59min/∞
Temperature control accuracy (at 37℃)
≤±0.3℃
Display accuracy
0.1℃
Temperature uniformity (at 37℃)
Heating time
≤12 minutes (25°C to 100°C)
Cooling time 1
--
≤12 minutes (100°C to 25°C)
Cooling time 2
≤25 minutes (room temperature drops to 25℃ below room temperature)
Heating lid temperature setting range
OFF~+10℃
Thermal lid temperature control accuracy
≤±0.5℃
Heating time of hot lid
≤10 minutes (25°C to 100°C)
Store at 4℃ after running
support
Multi-point operation
Support (larger 5 points)
Multi-point loop operation
Support (large number of cycles 99 times)
Automatic preheating
Automatically run on startup
Automatic recovery after power failure
Sample capacity
See product accessories for details
input power
150W
Voltage
AC220V/50-60HZ
Fuse
250V 3A Ф5×20
Dimensions
300×200×210mm
weight
4.0 Kg
4.7kg
Hot cover type metal bath product accessories:
Module model
Remarks
EHC-01
35 x 2.0mL Centrifuge tube
RT-25℃~100℃
Cooling, heating
EHC-02
35 x 1.5mL Centrifuge tube
EHC-03
54 x 0.5mL Centrifuge tube
EHC-04
96 x 0.2mL Standard board
EHC-05
96 x 0.2mL Microplate
EH-06
RT+5℃~100℃
Heating type
EH-07
EH-08
EH-09
EH-10
Custom module
Customer Provided
Hot-lid metal bath
