Model:JXH-100
Brand:Jingxin
Specifications :Set
Introduction:JXH-100 constant temperature mixer is a multi-purpose constant temperature oscillator that combines a brushless DC motor and PID intelligent temperature control technology.
product description:
The JXH-100 constant temperature mixing instrument is a multi-purpose constant temperature oscillator that combines a brushless DC motor and PID intelligent temperature control technology. Its PID fuzzy control technology can accurately ensure the temperature control accuracy, and automatically adjust the heating rate to save waiting time.
JXH-100 perfectly combines the two functions of constant temperature and oscillation, which greatly shortens the time of experimental operation. It is an ideal automation tool for the reaction process of sample incubation, catalysis, mixing and storage. With multi-purpose functions such as heating, oscillation, and cooling, it can meet the needs of different users.
Features:
◆Users can independently turn off or turn on the constant temperature, oscillation, and timing functions to achieve multiple functions in one machine and improve equipment utilization;
◆Using metal modules, high temperature uniformity, easy module replacement;
◆The instrument has fast heating speed, uniform heating, precise temperature control and high stability;
◆Microprocessor control ensures superior temperature stability and uniformity;
◆Brushless DC motor, low noise, long life and maintenance-free;
◆LCD display, real-time display of current temperature and speed information;
◆With short oscillation jog function and temperature calibration function;
◆The oscillating speed is accurate and the fluctuation is small;
◆When the program runs, an alarm signal will be sent out;
◆ Optional power-off recovery function and automatic startup function to meet different needs of users;
◆Support module classification custom calibration function;
technical parameter:
Main parameters
Parameter range
Temperature setting range
0℃~100℃
time setting
1min~99h59min/∞
Display accuracy
0.1℃
range of rotation
200~1800Rpm
Heating time
≤12 minutes (25°C to 100°C)*
Multi-point loop operation
Support (can be cycled 99 times)
Automatically run on startup
Support
Sample capacity
See module selection table
Voltage
AC220V/50-60HZ
Dimensions
(mm)260x195x150 mm
Temperature control range
Room temperature +5℃~100℃
Temperature control accuracy
≤±0.3℃*
Temperature uniformity
Horizontal amplitude
3mm
Multi-point operation
Support (5 points)
Automatic preheating
Automatic recovery after power failure
input power
150W
Fuse
250V 3A Ф5×20
weight
7.5Kg

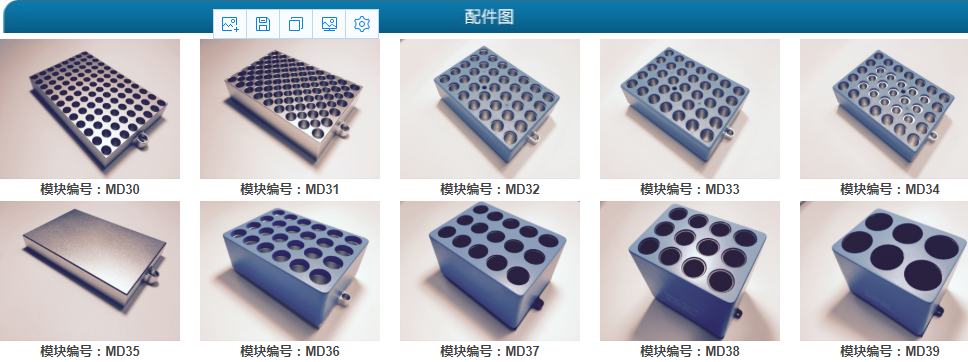

Optional modules:
Model
Test tube diameter
Test tube number
MD30
0.2ml (standard plate)
96
MD31
0.5ml (centrifuge tube)
54
MD32
1.5ml (centrifuge tube)
35
MD33
2.0ml (centrifuge tube)
MD34
0.5ml+1.5ml (centrifuge tube)
15+20
MD35
0.2ml (enzyme plate)
MD36
5ml
24
MD37
10ml
15
MD38
15ml
12
MD39
50ml
6
Custom module
Sample tube specifications provided by the customer
——
Accessories picture:

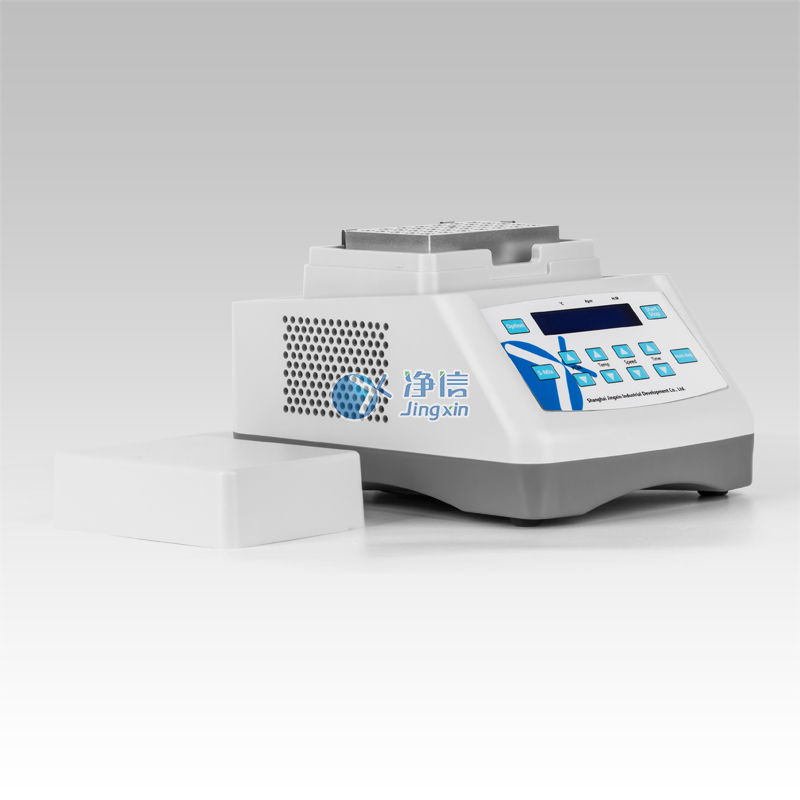

Constant temperature mixer
