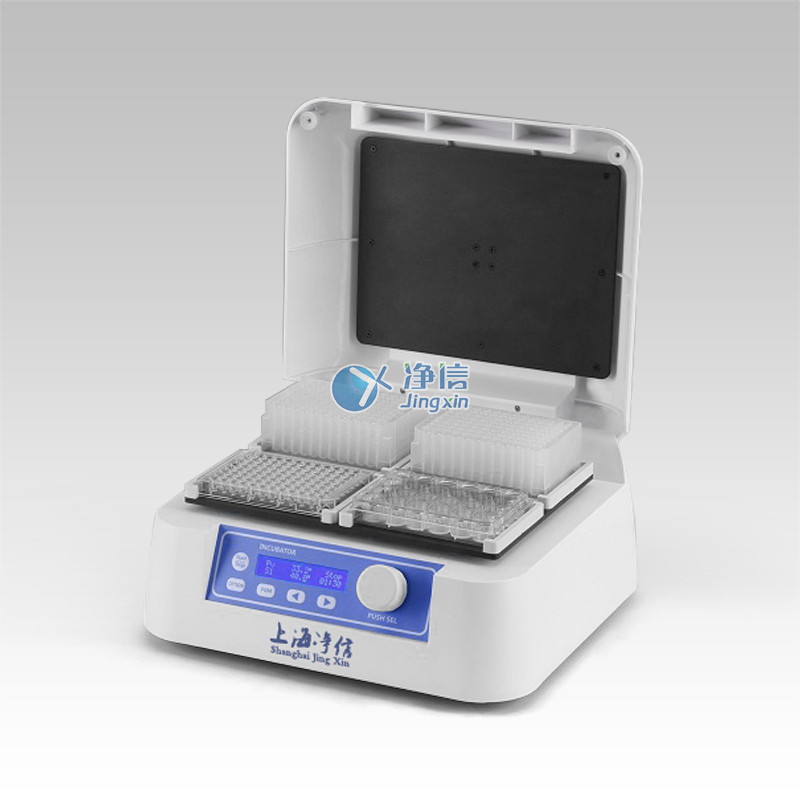

Model：WKB-100-4
Brand：Jingxin
Specifications ：Set
Introduction：WKB-100-4 special constant temperature oscillator for microplates is a multi-purpose constant temperature oscillator that combines a brushless DC motor and PID intelligent temperature control technology.
product description:
WKB-100-4 special constant temperature oscillator for microplates is a multi-purpose constant temperature oscillator that combines a brushless DC motor and PID intelligent temperature control technology. Its PID fuzzy control technology can accurately ensure the temperature control accuracy, and automatically adjust the heating rate to save waiting time. WKB-100-4 perfectly combines the two functions of constant temperature and oscillation, which greatly shortens the time of experimental operation. It is an ideal automation tool for the reaction process of sample incubation, catalysis, mixing and storage.
Features:
◆ Simple and easy-to-use man-machine operation interface, real-time display of all operating information and setting information, convenient for users to observe the operating status of the equipment.
◆ It can process 4 ELISA plates or deep well plates at a time;
◆ Adopt hot cover heating technology;
◆ Support automatic preheating function;
◆ Support automatic recovery function after power failure;
◆ Comes with temperature calibration function;
◆Using DC brushless motor, low noise, low interference and maintenance-free;
technical parameter:
Main parameters
Parameter range
Temperature setting range
0℃~80℃
Temperature control range
Room temperature+5℃~80℃
time setting
1min~99h59min/∞
Temperature control accuracy
≤±0.5℃*
Display accuracy
0.1℃
Temperature uniformity
Heating time
≤10 minutes (25℃ to 80℃)*
Automatic preheating
support
range of rotation
300~1350Rpm
Horizontal amplitude
3mm
Sample capacity
4 microtiter plates or deep well plates
Automatic recovery after power failure
Fuse
250V 3A Ф5X20
input power
300W
Voltage
AC220V/50-60HZ
Dimensions (mm)
340×320×200mm
weight
9.5Kg
Oscillator special for microplate
