Model：MP-2500
Brand：Jingxin
Specifications ：
Introduction：The microplate centrifuge is specially developed for microplates
The microplate centrifuge is specially developed for microplates, which is convenient for hanging droplets from the bottom. When in use, the microplates can be vertically loaded into the centrifuge rotor from the top slot. The liquid is under the action of surface tension. Keep it at the bottom of the microplate without leakage.
Features:
1. Automatically shut down when opening the lid
2. Straight brushless motor
3. Designed specifically for microplates
①Suitable for 96 holes and 384 holes
②Suitable for with skirt without skirt
③A variety of standard PCR microplates
High efficiency: fast acceleration and short braking time
Application areas:
It is suitable for the centrifugation of samples in biochemistry, molecular biology, enzyme-linked immunoassay and general laboratory fields.
Basic parameters:
Main parameters
Parameter range
Speed setting range
2200~2800Rpm
Relative centrifugal force
550g
Braking time
≤4秒sec（2800~0Rpm）
Short run
support
Input power
45W
Fuse
250V/3A Ф5X20
Weight
3.3Kg
Time setting
15sec~59秒sec
Acceleration time
≤10秒（0 to 2800Rpm）
Shutdown when opening the lid
Capacity
2 standard PCR microplates
Voltage
AC110~220V/50-60HZ
Dimensions
260X240X226mm

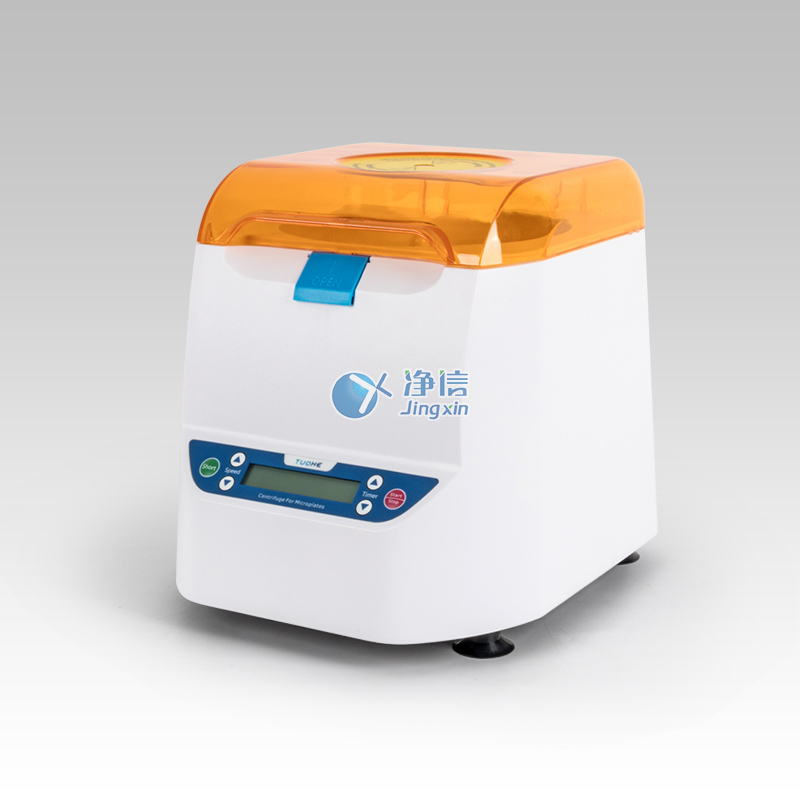

Microplate centrifuge
