Model：XM-2018
Brand：Shanghai Jingxin
Specifications ：Set
Introduction：crushing, mixing, homogenizing and cell disruption, freeze grinding

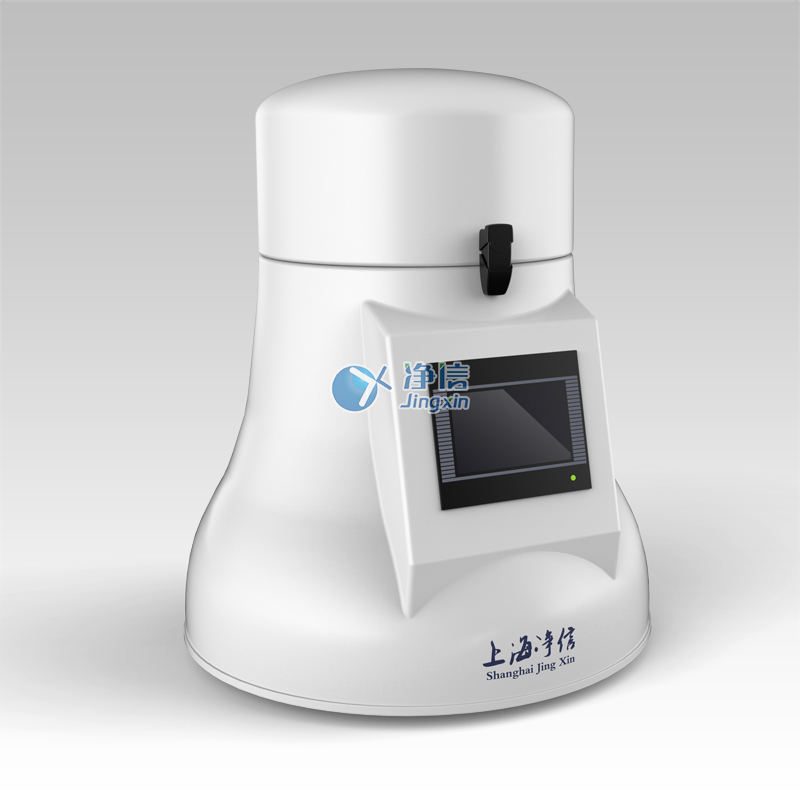

Shanghai Jingxin?'s high-throughput tissue grinder (patented product, counterfeit must be investigated! ZL2018300207398) is a special, fast, high-efficiency, multi-test tube consistent system. It can extract and purify the original DNA, RNA and protein from any source (including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, etc.).
Product features of high-throughput tissue grinder:
Usage: crushing, mixing, homogenizing and cell disruption, freezing grinding
Application areas: agriculture, biology, chemistry, plastics, building materials, electronics, environment, food, glass, ceramics, medicine, mineral metallurgy, etc.
Applicable samples: plants (roots, leaves, seeds, etc.), animals (muscles, internal organs, bones, teeth, etc.), microorganisms, food, soil, minerals, etc.
Applicable sample texture: hard, moderately hard, soft, brittle, elastic, fibrous, etc.
Crushing principle: impact force, friction force
Movement mode: horizontal reciprocating oscillating ball mill
Grinding type: dry grinding, wet grinding, low temperature grinding
Main parameters
Parameters range
Sample temperature rise protection design:
Have
Number of grinding platforms:
2
Sample throughput:
24 2.0ml sample tubes, 10 5.0ml sample tubes or 2 15ml grinding jars
Parameter display mode:
Digital Display
Vibration frequency setting:
100-2000 times/min, continuously adjustable
Crushing time setting:
0 seconds - 9999 minutes
Interval time setting:
0 seconds - 99 seconds
Programming function:
Programmable grinding time, pause time and number of cycles
Intermittent oscillation function:
Typical crushing time:
2 minutes
Injection size:
≤8mm
Discharge particle size:
~5μm
Center automatic positioning and tightening:
Self-contained center automatic positioning and fastening device
Flip switch:
Automatic stop when the cover is opened
Security Level:
Compliant with EU CE certification
Main body material:
All metal body
Cryogenic grinding function:
Adapters and grinding jars can be immersed in liquid nitrogen Sample temperatures up to -192°C
Accessories for high-throughput tissue grinders：
Grinding jar: Optional: a pair of 15ml screw-cap grinding jars, available in various materials such as hard steel, Teflon and corundum
Grinding test tube fixture: Optional: a pair of 12-hole 2ml adapters, a pair of 5-hole 5ml adapters
Other optional accessories: all-steel grinding beads (φ2/3/5/8mm), tungsten carbide grinding beads (φ3/5mm), zirconia grinding beads (φ5mm), glass beads (φ0.1-2mm), hard grinding Test tubes (24/pack), stainless steel grinding tubes (8/pack)
High Throughput Tissue Grinder-2018
