Model：JXFSTPRP-576
Brand：Shanghai Jingxin
Specifications ：Set
Introduction：tissue homogenization, grinding, cell disruption, homogenization, material dispersion, preparation, sample mixing, shaking.

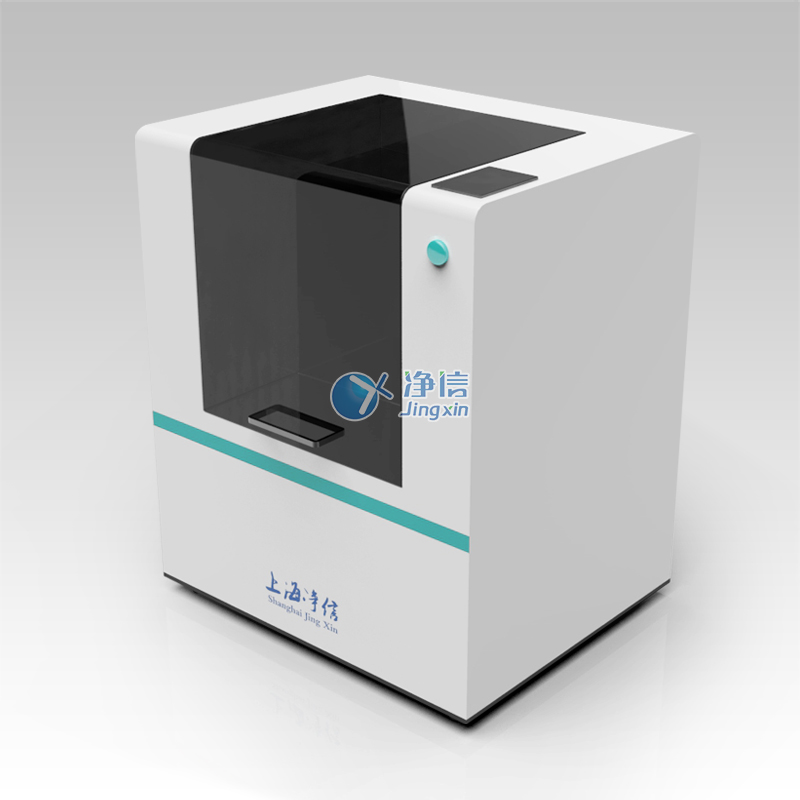

Ultra-high-throughput tissue grinder JXFSTPRP-576 (patented product, counterfeit must be investigated! 201620363493X)
Main application: It is used for sample pretreatment of biological samples, and it can truly realize the rapid extraction of genomes in large batches and automation.
Application fields: tissue homogenization, grinding, cell disruption, homogenization, material dispersion, preparation, sample mixing, shaking.
Display mode: LCD screen
Processing sample volume: 6 96-well 2ml large plates, 48 5ml grinding tubes, 48 (7-15) ML grinding tubes, 9 50ML grinding tubes, 6 100ML grinding tubes, 2 300ML grinding tubes, 1 A 500ML grinding tube, and various specifications of grinding tubes can be customized arbitrarily.
Operating procedures:
Parameters：
The main parameters
parameter range
Grinding speed:
0-50HZ
power supply:
220v/50HZ.
operating hours:
0-9999S
Grinding Ball Diameter:
0.1mm-30mm
Adapter Specifications:
Compatible with 6*96-well 2mL large plate, can be customized Compatible: 48*5mL grinding tube, 48*(7-15)mL grinding tube, 9*50mL grinding tube, 6*100mL grinding tube.The grinding jar compatible with stainless steel can also be customized, 5mL, 15mL, 50mL, 100mL, 300mL, 500mL optional
Grinding Ball Material:
Stainless steel, chrome steel, zirconia, quartz sand, tungsten carbide.
Accelerate/Decelerate:
5 seconds
Noise level:
<55db.
Grinding method:
Wet grinding, dry grinding, and cryogenic grinding are available.
Number of grinding platforms (the number of grinding jars that can be accepted):
>12
a fixed way:
Fastening device with automatic centering.
Shockproof principle:
JXFSTPRP-1 anti-vibration principle, as well as the three-dimensional integrated movement mode of the grinding bead movement, ensure the idealization of sample processing and instant crushing effect.
Feed size:
No requirement (adjusted according to adapter)/~5μm
Dimensions:
580mm*470mm690mm
Weight:
75kg
Cooling:
Can be matched
standard:
CE
xperimental site:
Ultra High Throughput Tissue Grinder
