Model：Tissuelyser-600
Brand：Shanghai Jingxin
Specifications ：Set
Introduction：Application fields: Widely used in various industries such as biomedicine, agriculture, geology, forensic medicine, food, metallurgy, chemical industry, RoHS, toys, environment, quality inspection, universities and so on.
Product Description:

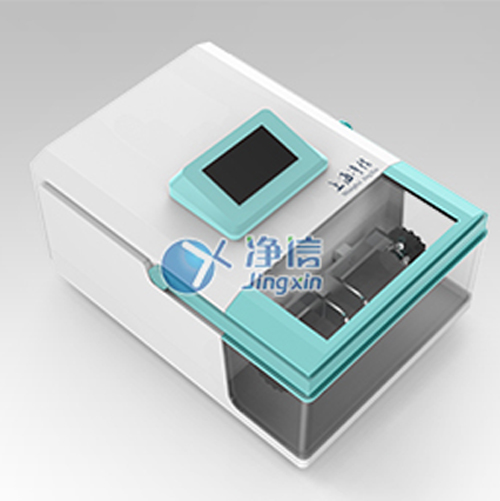

Tissuelyser-600 is a veritable laboratory multi-functional and high-efficiency sample preparation instrument, which is a new product specially launched for "small samples". The grinder can perform fast and effective dry or wet grinding of hard, soft, and elastic samples within 1-3 minutes, and can also achieve the purpose of mixing and homogenizing powder and turbid liquids, and can also perform biological cells Fragmentation and DNA/RNA extraction.
Low-temperature liquid nitrogen freezing grinding can also be carried out. The heat-sensitive and elastic materials can be successfully ground by pre-freezing the sample and the grinding tank. The sample and the JINXING grinding kit are immersed in liquid nitrogen, and the grinding tank is quickly fixed to start grinding after being fully frozen.
Application fields:
Widely used in various industries such as biomedicine, agriculture, geology, forensic medicine, food, metallurgy, chemical industry, RoHS, toys, environment, quality inspection, universities and so on.
Main advantages:
It can process 2-48 samples at a time, and the maximum capacity can be 6*100ML 8*50ML
To avoid cross-contamination, disposable grinding tubes can be used to avoid cleaning troubles
Strong versatility, can grind soil/process animal and plant samples/freeze plastic products
technical parameter:
Main parameters
Parameter range
Speed
0-40hz
Maximum sample size
≤10mm
Maximum processing capacity
8*50ml/6*100ml
Final output particle size
~5um
Amount of samples processed (pieces)
2-48
Capacity specification
6*100ml/8*50ml
Number of grinding platforms (the number of grinding tanks that can be accommodated)
2
Vibration frequency setting 10-2100 times/min
10-2100次/分鐘
Typical crushing time 2min
2min
Dry grinding
是Yes
Wet grinding
Yes
Cryogenic grinding
Fastening device with automatic centering
Grinding tank type
screw cap grinding tank
Grinding kit material:
hard rigid Teflon
Grinding tank size
2ml/5ml/25ml/50ml/100ml
Crushing time setting digital display
1 second—99 minutes 59 seconds
Drive
brushless motor
power
150W
size (width X height X depth)
300x180x420mm
Net weight:
~26kg
Product acessories:
Grinding effect :
High-throughput soil grinder
