Model:JX-PS1
Brand:Shanghai Jingxin
Specifications :Set

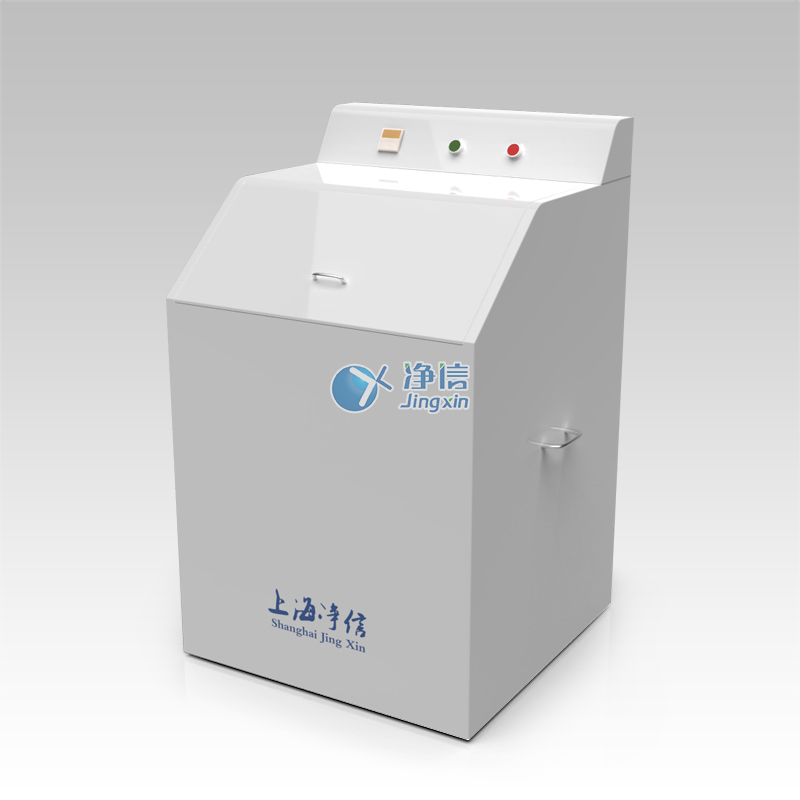

Introduction:The grinding device of the JX-PS high-efficiency vibrating disc grinder is fixed on a free vibrating structure.
Application areas:
Mining industry: coal, minerals or ore, physical and chemical analysis sample pretreatment
Metallurgy: grinding blast furnace slag, cement or cast iron samples
Ceramic industry: grinding ceramic samples, etc.
Agriculture and Ecology: Preparation of samples for chemical analysis of ground soil, silt or fruits and vegetables
working principle:
The grinding device of the JX-PS high-efficiency vibrating disc grinder is fixed on a free vibrating structure. The grinding medium (disk and ring) in the equipment is accelerated under the action of centrifugal force, and grinds through impact, extrusion and friction. The material is ground into a powder. The grinding device (made of hard steel, tungsten carbide or agate) is sealed by an embedded sealing ring during dry or wet grinding, which is convenient to reduce loss.
Features:
-Fast grinding speed and high strength
Can be dry or wet
Grinding conditions can be repeated
The material and capacity of the grinding device are optional
-Large processing capacity, 3 grinding cups run at the same time
Convenient operation and easy to clean
A variety of accessories to choose from
technical parameter:
model
JX-PS1
JX-PS2
JX-PS3
Feed opening size
Number of bowls
120*1
130*2
130*3
Feeding size
≤15
Discharge size
10-20
Production capacity
100
200
300
power
1.1KW (380V)
1.5KW (380V)
Dimensions
480*480*730
530*530*920
Weight
110
115
130
Grinding tank capacity
300-3000ml
Jar material
Stainless steel, agate, tungsten carbide
High-efficiency vibrating disc grinder
