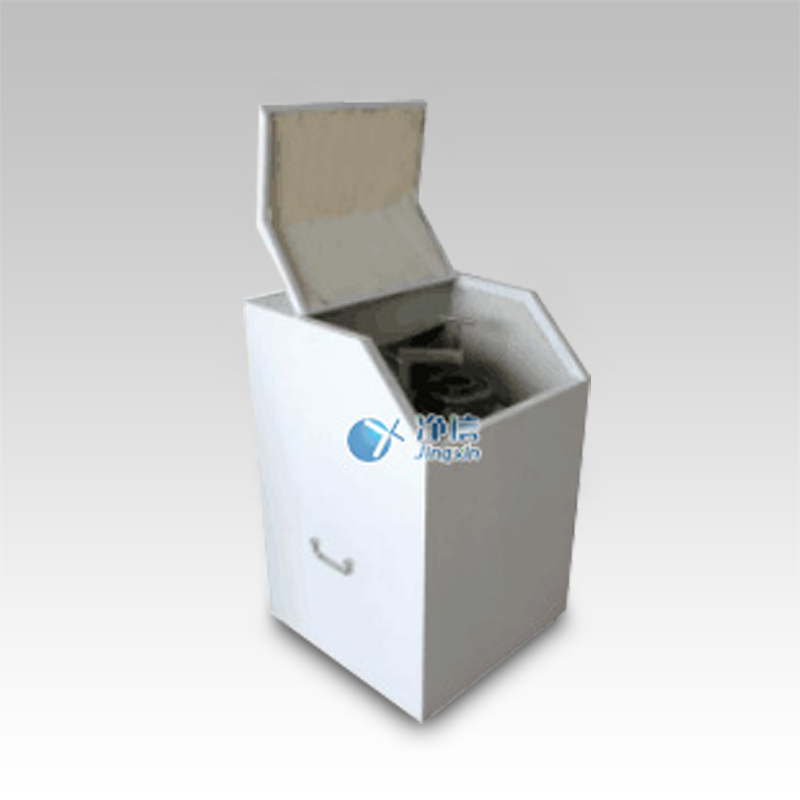

Model：JX-GN150
Brand：Shanghai Jingxin
Specifications ：Set
Introduction：The vertical eccentric pendulum shaft is adopted. When the motor is running at high speed, the vibrating platform eccentrically swings, generating a certain centrifugal force and inertial force moving in the direction of rotation,......
Main principle:
The vertical eccentric pendulum shaft is adopted. When the motor is running at high speed, the vibrating platform eccentrically swings, generating a certain centrifugal force and inertial force moving in the direction of rotation, driving the three tanks on the platform to perform three-dimensional movement up and down, left and right, and back and forth, and the grinding balls in the tank correspond to Do three-dimensional movement, high-speed impact on the tank wall to grind the sample, and the heat generation ratio is low, the milling energy input is 2-3 times higher than the traditional planetary two-dimensional movement.
The sample realizes mechanical alloying in a very short time to form nano ultrafine powder or amorphous material.
Application range:
Grinding of trace and small samples in laboratories of major universities and research laboratories in biology, chemical industry, materials, construction, environment, geology and mining, pharmaceuticals and other industries;
Mechanical alloying and new material development in electronics and materials industries;
Various industries, dry and wet ball milling or mixing various solids, suspensions and pastes with different particle sizes and materials.
Design Features:
○Vertical eccentric shaft design, three-dimensional movement of the tank
○It can grind three different materials at the same time, with good synchronization and repeatability
○The instrument has a stable center of gravity and a double-layer design to prevent the phenomenon of "off-tracking" during the grinding process
○Tensile spring balance system to prevent damage to the vibration platform caused by huge impact
○Asynchronous motor to ensure continuous operation of the instrument for up to 72 hours
○The tank body is sealed, which can realize dry and wet grinding and mixing
○The tank can be immersed in liquid nitrogen to realize low-temperature grinding
technical parameter:
Main parameters
Parameter range
Tank specifications:
50ml, 80ml (customizable)
Large filling capacity per tank:
two-thirds of the volume of the ball mill tank
Large feed size:
<25px
Discharge particle size:
as small as 0.1μm
Vibration frequency:
1200 times/min
Tank amplitude:
vertical direction: 50mm; front and rear direction: 18mm
Power parameters:
220V 50Hz
Experimental case
1. Description:
(1) Application field: environment;
(2) Materials/raw materials: soil, pebbles;
(3) The particle size of the feed material: 1mm;
(4) Feeding amount: 500g;
(5) Material properties: brittle;
(6) Customer requirements: 50μm;
(7) Post-sequence analysis: particle size analysis.
2. Scheme:
(1) Equipment (instrument) selection: JXGS-1A, soil grinder;
(2) Jar and ball configuration: agate jar with agate ball;
(3) Operating parameters: 500 revolutions per minute of autorotation, alternating forward and reverse rotation after 30 minutes;
(4) Grinding time: 1 hour;
(5) Results (recommendation): JXGS-1A can be used to grind the soil;
(6) Grinding result: 100%＜50μm.
