Model：JX-2G
Brand：Shanghai Jingxin
Specifications ：Set

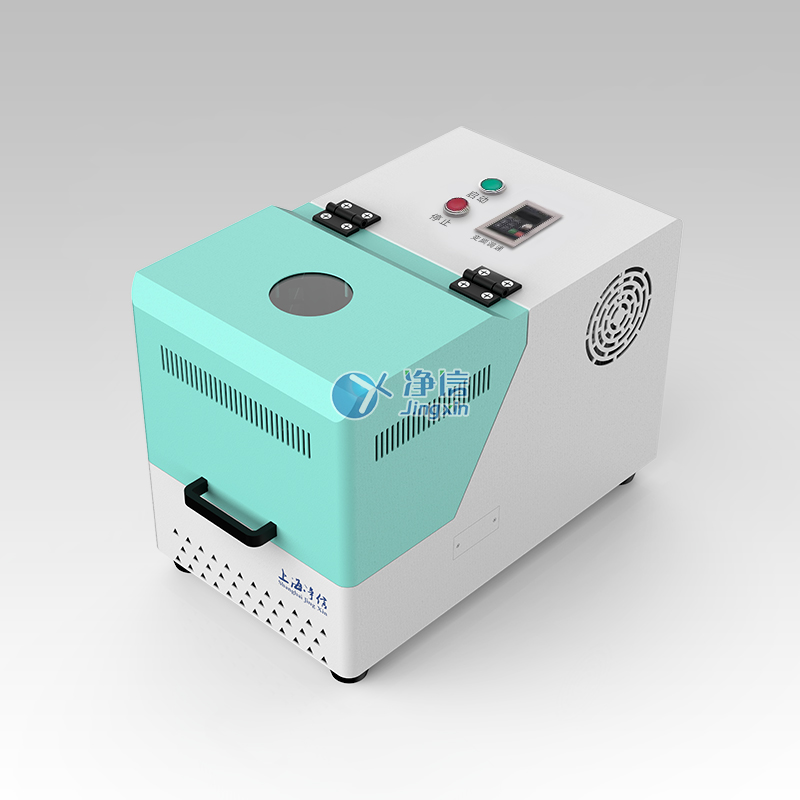

Introduction：JX soil grinder is a special high-performance mechanical equipment for the preparation of small ultra-fine powders developed by our company.
Product Description:
The JX type soil grinder is a kind of special high-performance mechanical equipment for the preparation of small ultra-fine powders developed by our company. A large number of user applications show that the soil grinder has the characteristics of small size, light weight, easy operation, and no pollution, which is very suitable for the use of various types of soil grinding in the laboratory. The soil machine uses an advanced planetary structure to increase the grinding efficiency more than ten times; the four tanks are separately loaded, so that different materials do not affect each other. Gear transmission ensures the consistency and repeatability of the experiment; fast rotation and energy Large, high efficiency, fine particle size; four samples of different sizes and materials can be obtained at the same time in one experiment;
Advantages of soil grinder:
1. Inlet size: ≤10 mm, other materials ≤3mm, discharge particle size: <100nm, dry or wet grinding can be performed;
2. Pressure can be set (via scale), digital timing;
3, can provide 7 kinds of different materials of grinding kits, stainless steel, agate, etc.
4 Real-time power display, crushing time setting, digital format, continuous operation from 1 to 99 minutes;
5 The grinding room is designed to be sealed and dust-proof, with an observation window;
6. High-power drive with electronic monitoring device.
Technical parameter:
Main parameters
Parameter range
Brand Name:
JXFSTPRP Jingxin
Product name:
Soil grinder
Model:
JX-2G
Operation mode:`
LCD touch display
Sample size (different materials):
≤10mm, other materials ≤3mm
Sample size:
＜100nm
Processing capacity:
50ml/can
Ball mill tank capacity:
4x100ml
Main disc speed:
35-435r/min
Rotation speed of ball mill tank:
70-8700r/min
Transmission ratio (planetary disc/ball mill tank):
1：2
Forward and reverse operation:
yes
Continuous running time setting:
1-9999 min
Pause time setting:
1-999 min
Dangerous emergency stop:
Grinding room lighting description:
LED blue light
Touch screen:
adaptation
Carrier volume:
50ml -100ml
Material of ball milling media:
stainless steel, agate, zirconia, corundum, nylon, polytetrafluoroethylene optional
Media diameter:
3/5/10/15/20mm
Media quality:
100-400g
Grinding method:
dry grinding / wet grinding
Low temperature cooling treatment:
Yes (additional)
Inert gas protection treatment:
Yes
Net weight:
29kg
Size (length, width and height):
530*300*340mm
Standard:
CE
Tank ball ratio:
Grinding jar
100ml
Effective volume
1-50ml
Ball size
Number of balls
5mm
300
10mm
30
15mm
15
20mm
8
