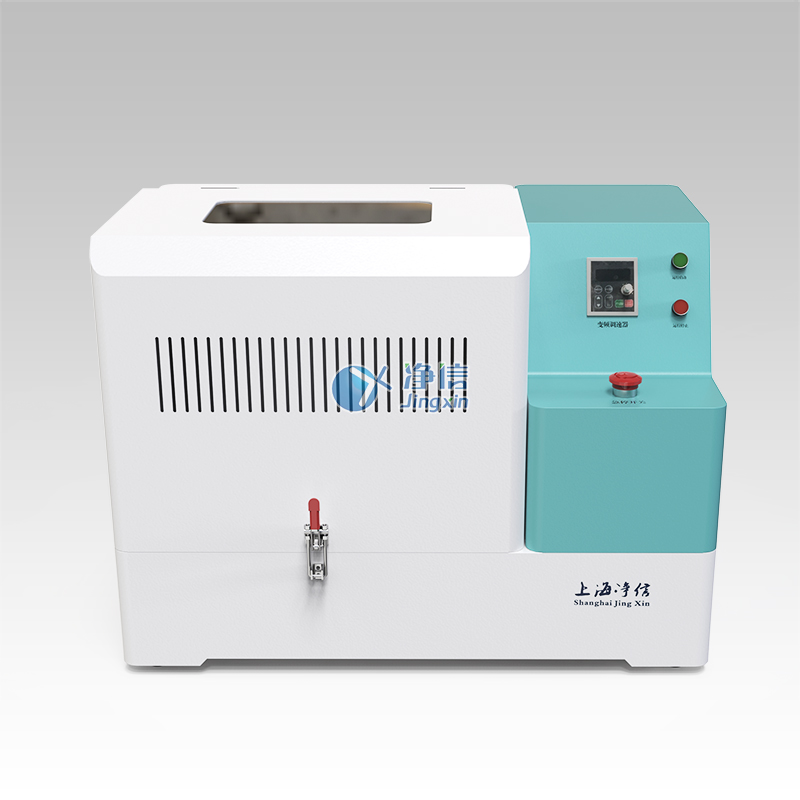

Model：JX-4G
Brand：Shanghai Jingxin
Specifications ：Set
Introduction：JX-4G high-performance ball mill can grind samples to nanometer level in a short time.This instrument is suitable for grinding (dry or wet grinding) and mixing processing of soft,
Product Description:
The JX-4G high-performance ball mill can grind samples to the nanometer level in a short time. The instrument is suitable for grinding (dry or wet grinding) and mixed processing of soft, medium-hard, extremely hard, and brittle samples, and guarantees the grinding The results are repeatable. It can be used in the preparation of physical and chemical analysis, colloidal grinding, new materials and mechanical alloys.
working principle:
When the instrument is started, the motor drives the public sun gear to rotate, and the grinding jar on the sun gear rotates around its own axis. The direction of the grinding jar's rotation is exactly opposite to the direction of the sun gear. The rotation speed ratio of the sun gear and the grinding tank is generally 1:-2.3. When the grinding ball and the grinding jar are operated together, they are affected by the superimposition of the deflection force of the rotation. Under this influence, the grinding ball releases a large amount of kinetic energy. Shattered.
main advantage:
Suitable for long-term sample preparation and continuous operation
The speed is adjustable, the operation is stable, and the sample can be ground to the fineness of micron level (dry grinding) and nano level (wet grinding).
Automatic reverse operation to prevent sample accumulation
6 different material grinding jars to choose from
Advanced operation interface, simple and convenient
Basic parameters:
Main parameters
Parameter range
Brand Name:
JXFSTPRP Jingxin
Product name:
Planetary Grinding Machine
Model:
JX-4G
Operation mode:
LED digital display
Maximum sample size (different materials):
< 10mm
Sample size:
< 100nm
Minimum processing volume
50ml/can
Maximum processing capacity:
4x1500ml
Main disc speed:
35-335r/min
Rotation speed of ball mill tank:
70-670r/min
Transmission ratio (planetary disc/ball mill tank):
1：2
Forward and reverse operation:
yes
Continuous running time setting:
00:01:00-99:59:59
Pause time setting:
Dangerous emergency stop:
Yes
Grinding room lighting description:
LED blue light
Ball mill carrier material:
stainless steel, agate, zirconia, corundum, tungsten carbide, polyurethane, etc. optional
Carrier volume:
100ml-1500ml
Material of ball milling media:
stainless steel, agate, zirconia, corundum, nylon, polytetrafluoroethylene optional
Media diameter:
3/5/10/15/20mm
Media quality:
200-1000g
Grinding method:
dry grinding / wet grinding
Low temperature cooling treatment:
Yes (additional)
Inert gas protection treatment:
Net weight:
92kg
Size (length, width and height):
720*480*500mm
Standard:
CE
Tank ball ratio:
Grinding tank
100ml
250ml
1500ml
Effective volume
1-50ml
30-125ml
240-700ml
Ball size
Number of balls
5mm
300
1200
2000
10mm
30
50
100
15mm
15
45
70
20mm
8
25
30mm
6
40mm
4
Grinding effect :
Different treatment effects:
1、Optional material of ball mill tank:
Optional volume of ball mill carrier: 100ml (need to be equipped with tank pads) / 250ml / 1500ml (standard)
Optional diameter of ball milling media: 3/5/10/15 / 20mm
Packing specifications of ball milling media: 200g/can 500 g/can 800 g/can 1000 g/can
