Model:TF-800
Brand:Shanghai Jingxin?
Specifications :TF-800

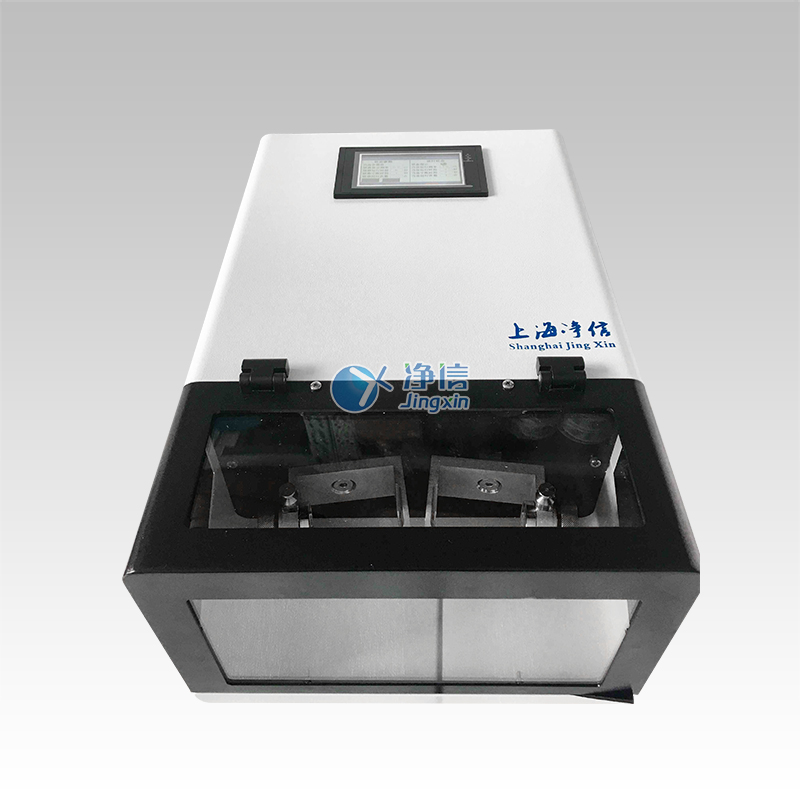

Introduction:TF-800 grinder is not only suitable for fine crushing and fine grinding of hard, medium-hard and brittle samples, but also suitable for soft, elastic and fibrous materials.
Product Description:
TF-800 grinder (patented product, counterfeit must be investigated! 2013200394108) is not only suitable for fine crushing and fine grinding of hard, medium-hard and brittle samples, but also suitable for soft, elastic and fibrous materials. The machine vibrates radially in the horizontal direction. The inertia of the grinding balls drives them to hit the sample material on the inner surface of the arc with high energy, so as to achieve the effect of crushing and grinding.
The movement of the adapter can be superimposed with the movement of the inner ball to fully mix the sample. The mixing effect can be further improved by using multiple small-diameter grinding balls. The use of multiple small-diameter grinding balls during grinding can greatly improve the homogeneity of the sample. Biological cells can be disrupted by using a large number of small balls (such as glass beads). The huge impact and friction between the ball and the ball can effectively achieve the fragmentation of the cells.
Performance characteristics:
*Fast and efficient grinding and homogenization.
* Large sample processing capacity, double-head grinding, short grinding time.
*A variety of adapters of different specifications can be selected.
*Reproducible dry grinding, such as rapid sample preparation for XRF analysis.
*Waste-free wet grinding is due to the screwable and sealed grinding jar.
*Comfortable low-temperature grinding operation, can be used for heat-sensitive materials without long freezing process, less liquid nitrogen consumption.
*Efficient breaking of animal and plant cell tissues or suspension cells, using the adaptor can process 5 or 10 samples at a time.

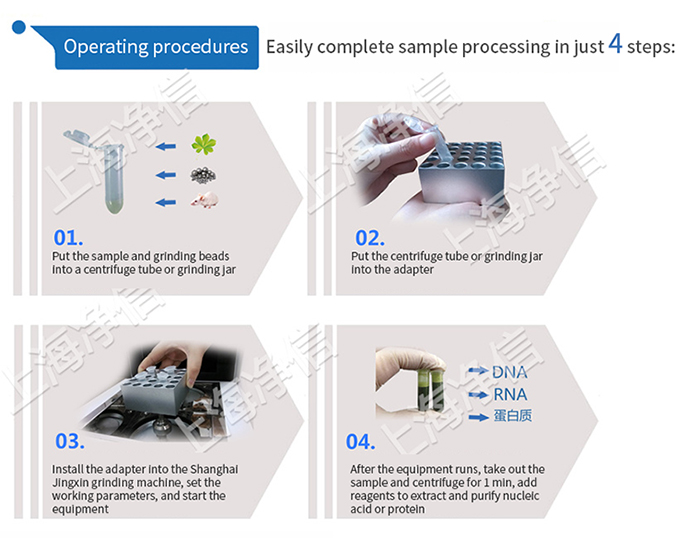

Operating procedures:
Technical parameters of tissue grinding machine:
The main parameters
Parameter range
Application
Tissue homogenization, grinding, cell disruption, homogenization, material dispersion, preparation, sample mixing, shaking
Sample type:
Hard, medium hard, soft, brittle, elastic, fibrous
Feed size
>8mm
Discharge size
About 5um
Sample approved processing capacity
>2*24*2ML
Scope of application
Dry grinding, wet grinding, cryogenic grinding, cell disruption
Number of grinding tanks
2
Vibration speed
3-30HZ
time control
0s--9999mins
Tissue grinding machine
