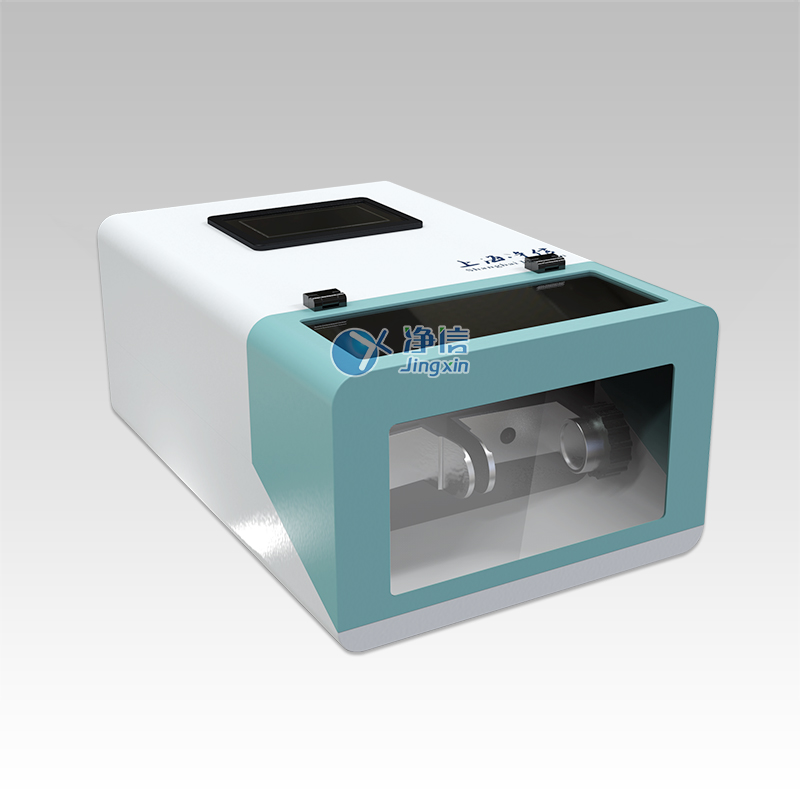

Model：Tissuelyser-II
Brand：Shanghai Jingxin?
Specifications ：Tissuelyser-II
Introduction：Tissuelyser-II (patented product, counterfeiting must be punished! 2013200394108) is a veritable laboratory multi-functional and efficient sample preparation instrument, which is a product launched for "small samples".
Product Description:
Tissuelyser-II (patented product, counterfeiting must be punished! 2013200394108) is a veritable laboratory multi-functional and efficient sample preparation instrument, which is a product launched for "small samples".
The Tissuelyser-II tissue grinder can quickly and effectively dry or wet grind hard, soft, and elastic samples within 1-3 minutes. It can also achieve the purpose of mixing and homogenizing powder and turbid liquids. It can be used for cryogenic grinding with liquid nitrogen, as well as for biological cell disruption and DNA/RNA extraction. The types of samples that the high-throughput tissue grinder can grind include: plant tissues, animal tissues, cells, bacteria, spores, and yeasts.
Application fields: High-throughput tissue grinders are widely used in various industries such as biomedicine, agriculture, geology, forensic medicine, food, metallurgy, chemical industry, RoHS, toys, environment, quality inspection, universities and so on.
Features:
1. Within 1-3 minutes, 24, 48, and 192 samples can be quickly and effectively ground;
2. By pre-freezing the sample and the grinding tank, you can successfully grind the heat-sensitive and elastic materials, immerse the sample and the JINXING grinding kit in liquid nitrogen, and quickly fix the grinding tank to start grinding after it is fully frozen
3. Various centrifuge tubes, PCR tube adapters, or grinding jars of different materials can be selected
4. 8-shaped vibration, sample grinding without dead corners
5. Simple and safe operation design
6. Exquisite and compact appearance
7. Screw cap grinding jar, sealed and dustproof
8. Automatic center positioning and safety locking
9. Suitable for dry and wet grinding of a variety of samples
10. Separate design, use closed net letter special grinding tank or disposable centrifuge tube to avoid sample cross contamination.

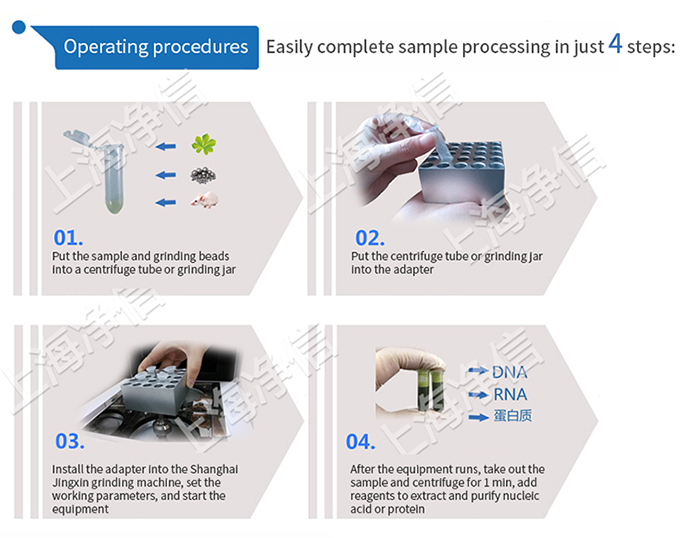

Operating procedures：
Product parameters:
The main parameters
Parameter range
Applications
Crushing, mixing, homogenization and cell disruption, cryo-grinding
Sample characteristics:
Hard, medium-hard, soft, brittle, elastic, fiber-containing
Principle of crushing:
Impact force, friction force
Feed size
≤8mm
Discharge size
~3um (different materials have different grinding fineness
Vibration frequency setting:
10-2100 times/min
Typical crushing time:
2min
Grinding method:
Dry grinding/Wet grinding/Cryogenic grinding
Fastening device with automatic center positioning
Number of grinding platforms:
2
Grinding tank types:
Screw cap grinding jar
Grinding kit materials:
Hard steel, Teflon nylon 0.5/1.5mL/2mL (centrifuge tube/PCR tube)
Grinding adapter:
24-well plate×2 96-well plate×2
Grinding kit size:
25mL/50mL (grinding tank)
Grinding ball material:
Agate, stainless steel, zirconia, tungsten carbide, ceramics
Crushing time setting:
Digital display 0 s -9999 mins
Drive:
Brushless Motor
Power
150W
Dimensions(W*H*D)
300*180*420
N.W.
~20Kg
Tissue grinder
